High-pressure cleaner HD 10/25-4 S

The HD 10/25-4 S cold water high-pressure cleaner delivers premium quality, high performance and helpful assistance systems. Designed for ergonomic working and maximum portability.

The cold water high-pressure cleaner HD 10/25-4 S is equipped with the EASY!Force Advanced gun and a rotatable 1050-millimeter stainless steel lance. Pressure and water volume can be regulated with the Servo-Control regulator on the gun or lance. The device has assistance systems and an LED status display. A swashplate pump with stainless steel pistons and a brass cylinder head as well as a 4-pole motor with water and air cooling are installed. The chassis consists of aluminum frame carriers and is suitable for crane loading. The motor and pump unit are installed vertically (upright concept). A kangaroo pocket and adjustable hooks serve for accessory storage.

Features and benefits

Compact upright design concept based on vertical arrangement of motor and pump unit

Small footprint and space-saving proportions.Easy to manoeuvre and transport.Maximum stability ensures a stable footing for the machine.

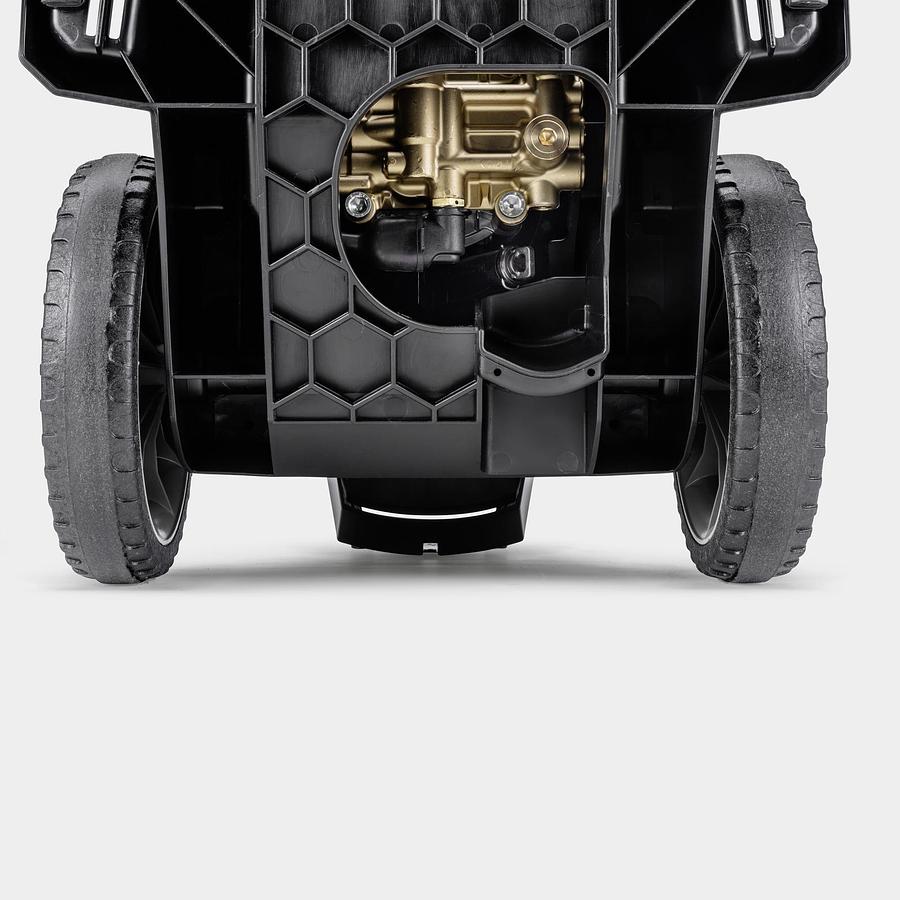

4-pole low-speed motor with air-water cooling system, solid pump with stainless steel pistons and brass cylinder head

Long service life and low maintenance costs.High performanceWith suction feature and up to 60 °C water temperature.

Intelligently designed service concept facilitates quick operations on site

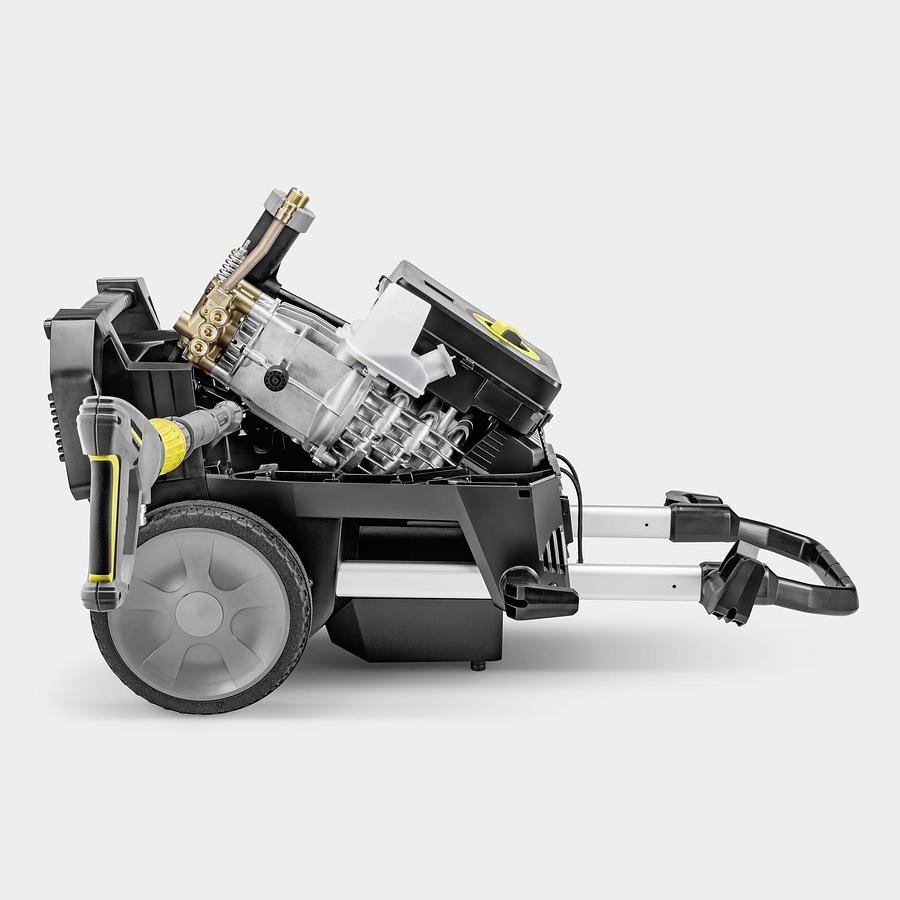

Convenient oil fill level display and oil drain hole integrated in the chassis.Modular construction, comprising pump, motor and control cabinet.

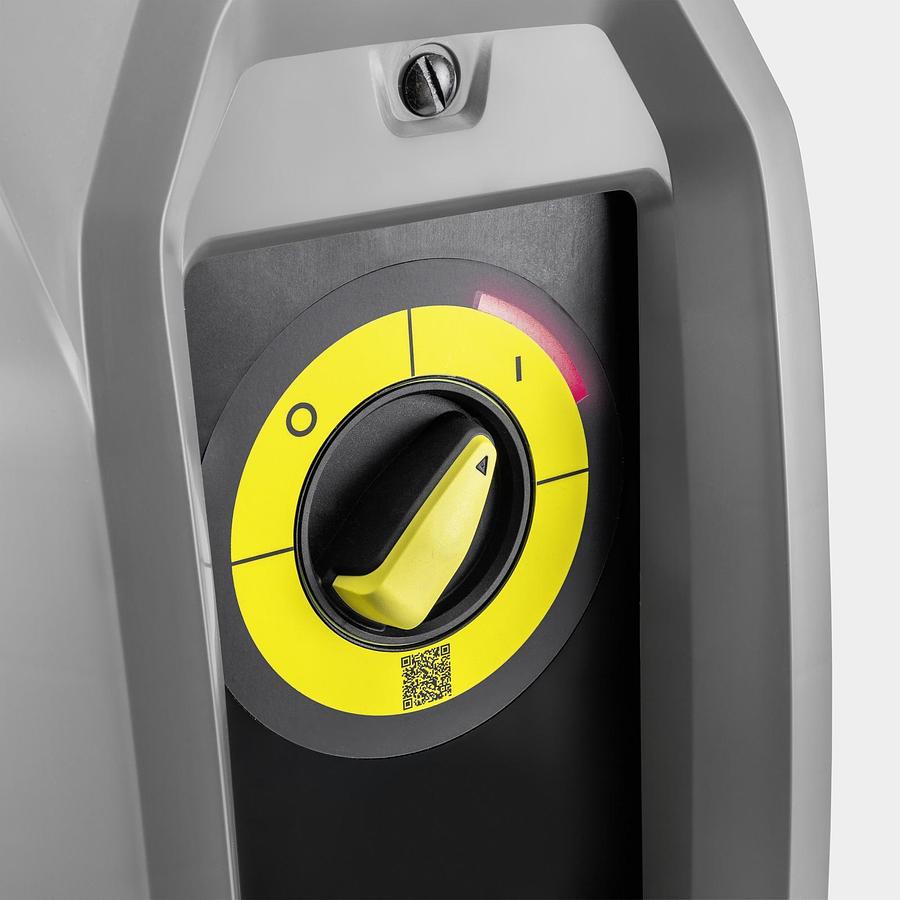

Assistance systems and LED status display

Integrated electronics system for machine monitoring.

Automatic switch-off in case of low voltage range or overvoltage.

Switches off in case of leaks or phase failure.

Wide-ranging accessories with EASY!Lock

Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.

EASY!Force Advanced for fatigue-free work without any holding force.

Rotating 1050 mm stainless steel lance.

Extensive range of accessories and attachment kits

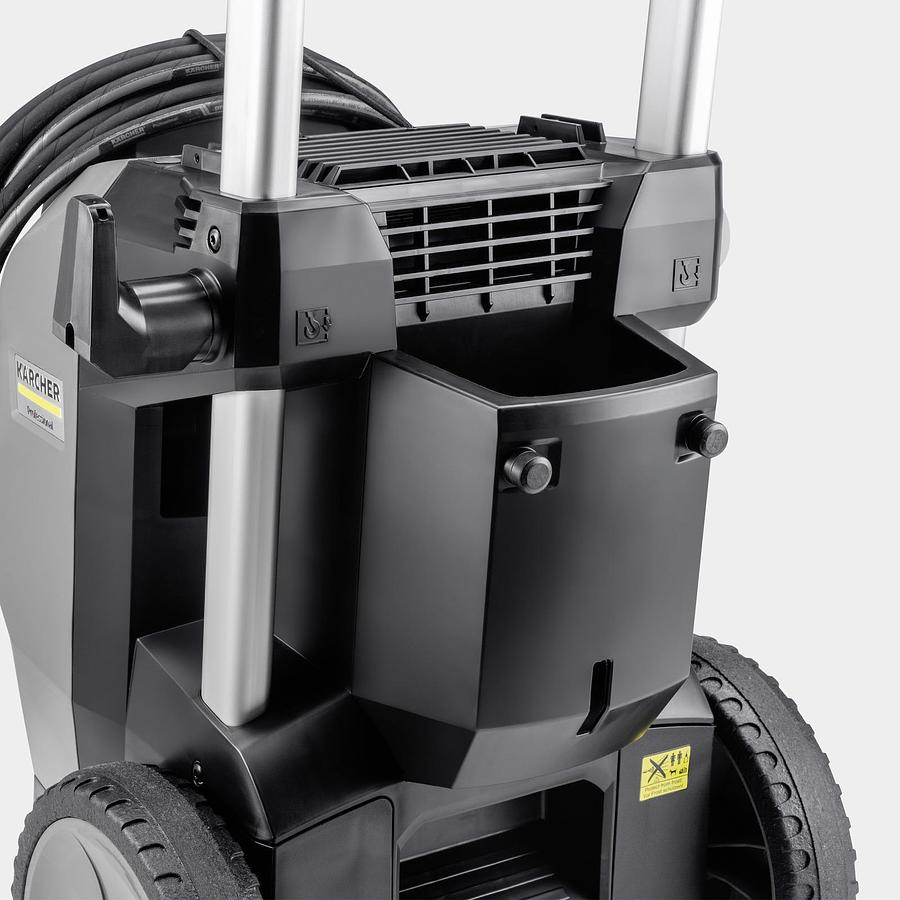

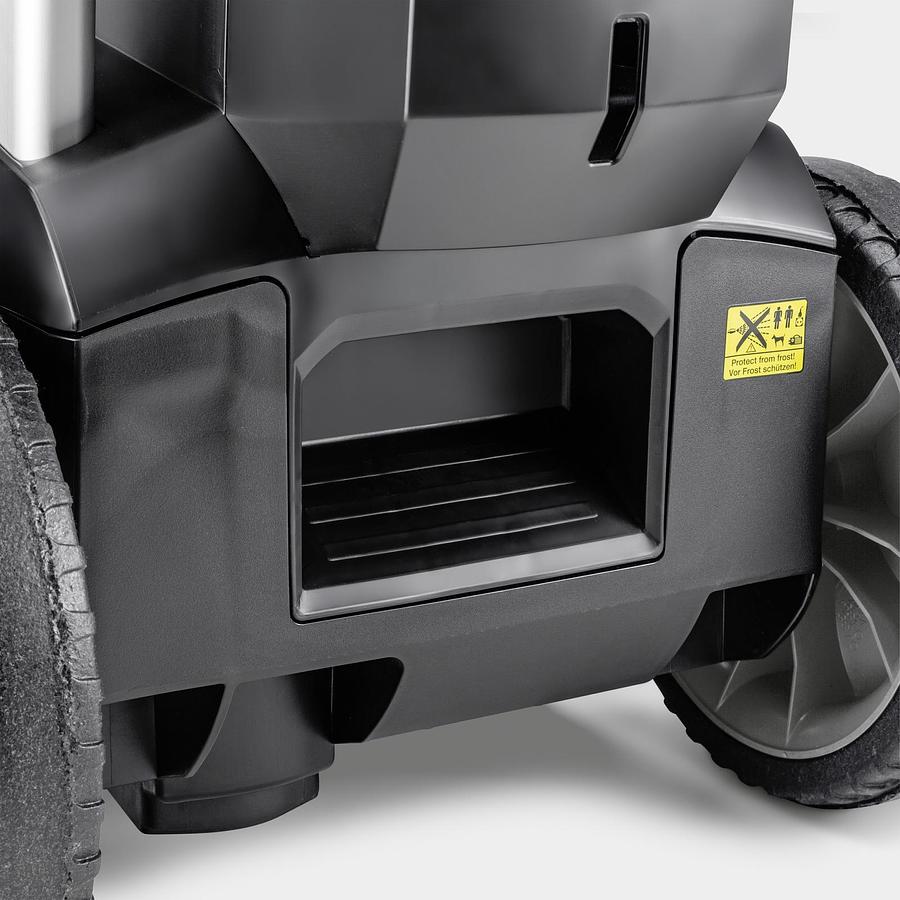

Stowage compartment.

Adjustable hooks, e.g. for storing second lance or electric cable.

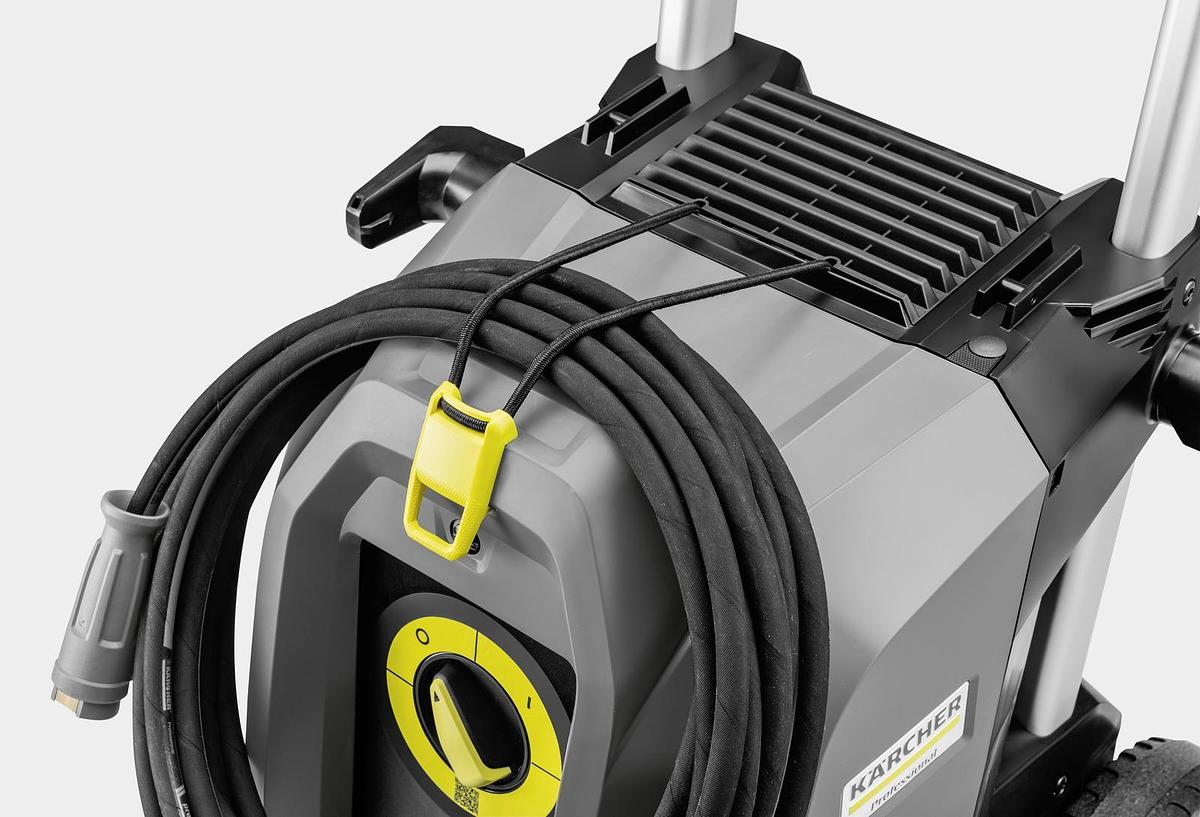

Storage for high pressure hose.

Scope of supply

Spray gun: EASY!Force Advanced

High-pressure hose length: 10 m

High-pressure hose type: Premium quality

High-pressure hose specification: DN 8, 315 bar

Spray lance: 1050 mm

Power nozzle

Servo Control

Equipment

4-pole three-phase motor with air and water cooling

3-piston axial pump: with stainless steel pistons

Pressure cut-off

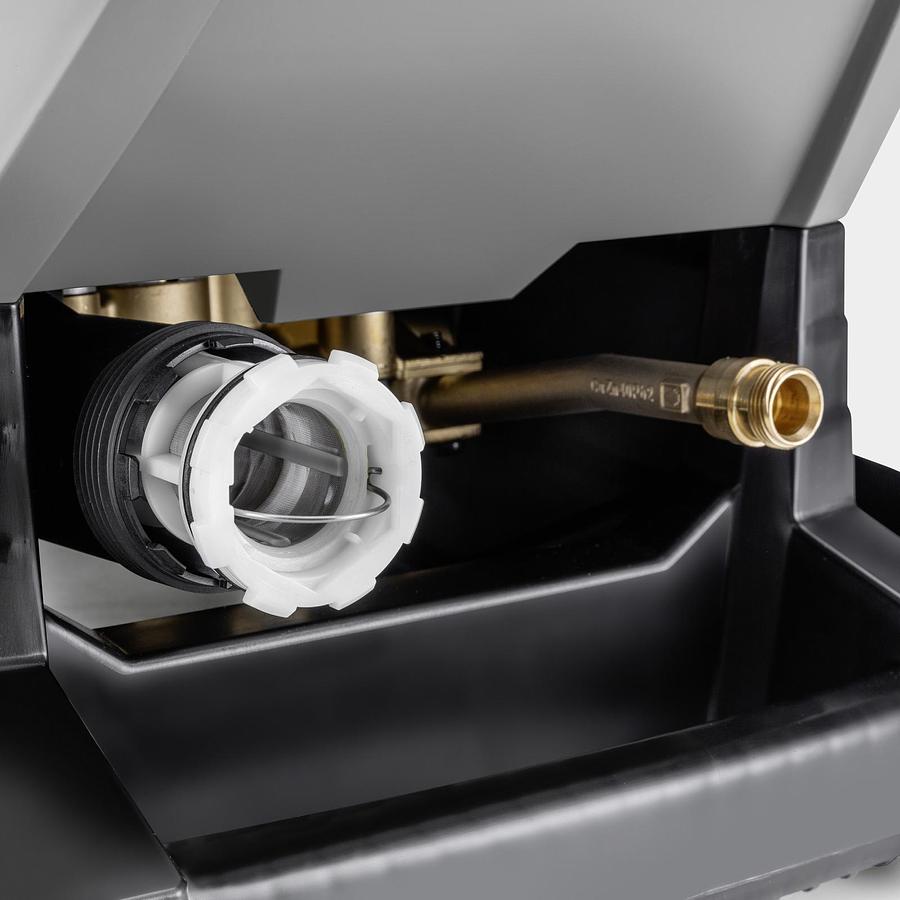

Integrated water fine filter

Motor protection electronics with LED display

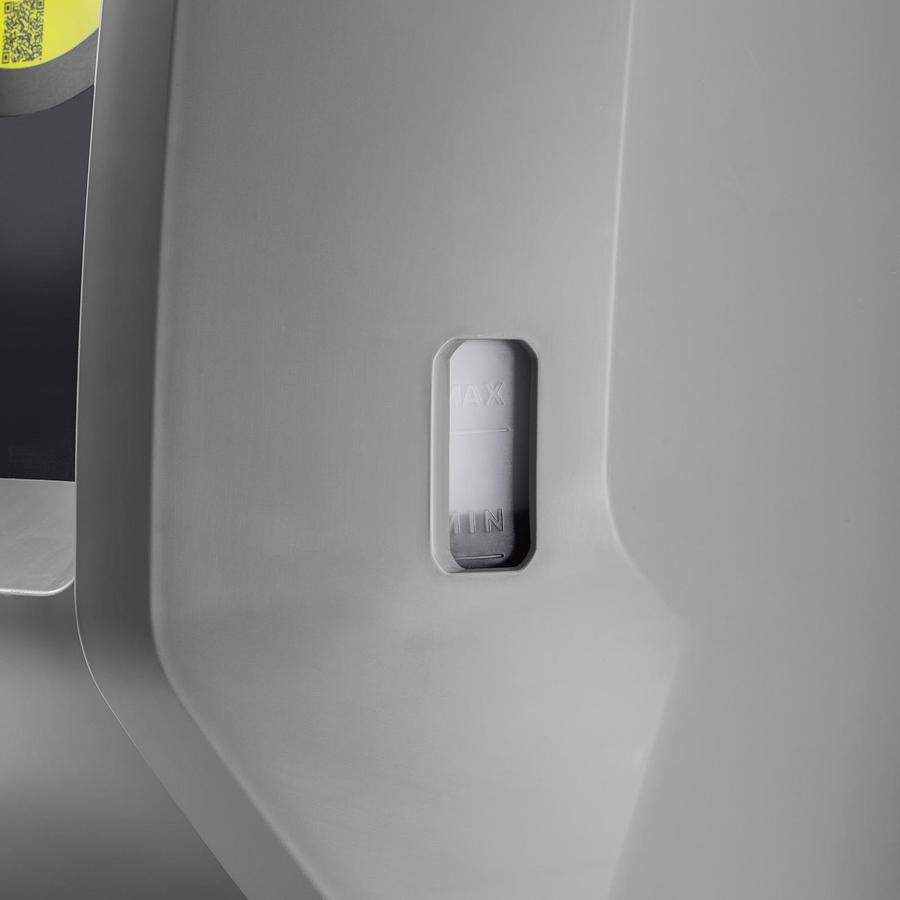

Sight glass for oil level

Brass water inlet
