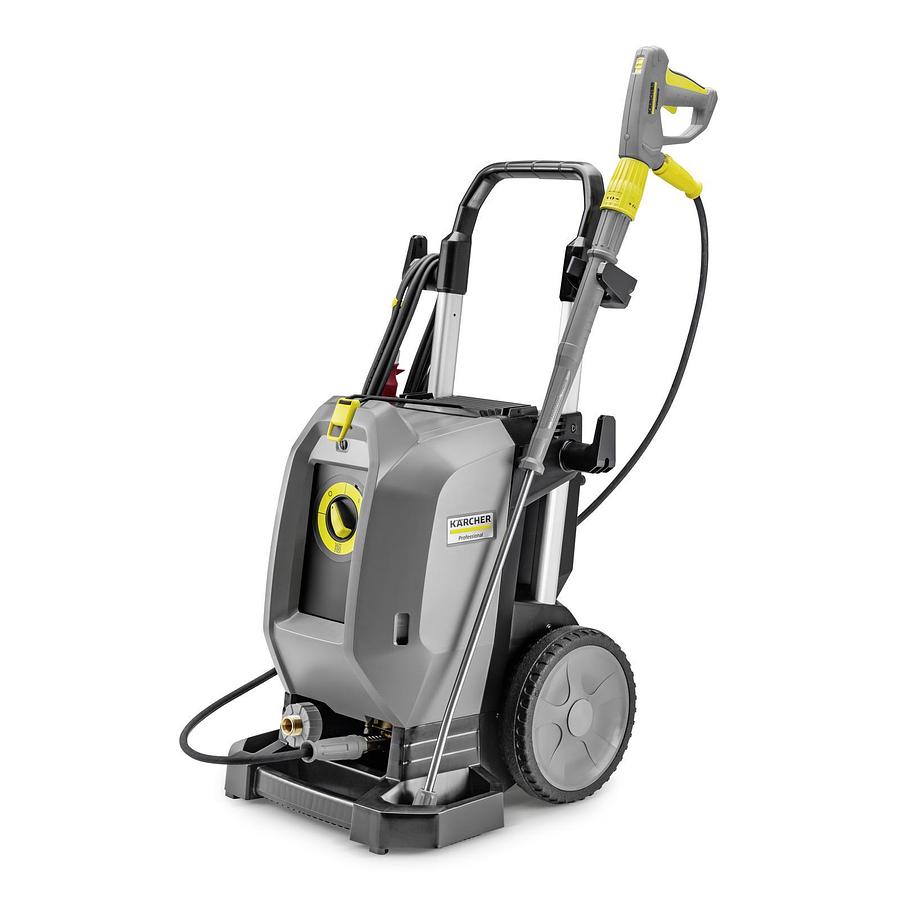

High-pressure cleaner HD 13/18-4 S
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 3 |
| Voltage (V) | 376 - 424 |
| Frequency (Hz) | 50 |
| Flow rate (l/h) | 700 - 1300 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar) | 50 - 180 |
| Max. pressure (bar) | 250 |
| Connected load (kW) | 8,8 |
| Power cable (m) | 5 |
| Nozzle size | 075 |

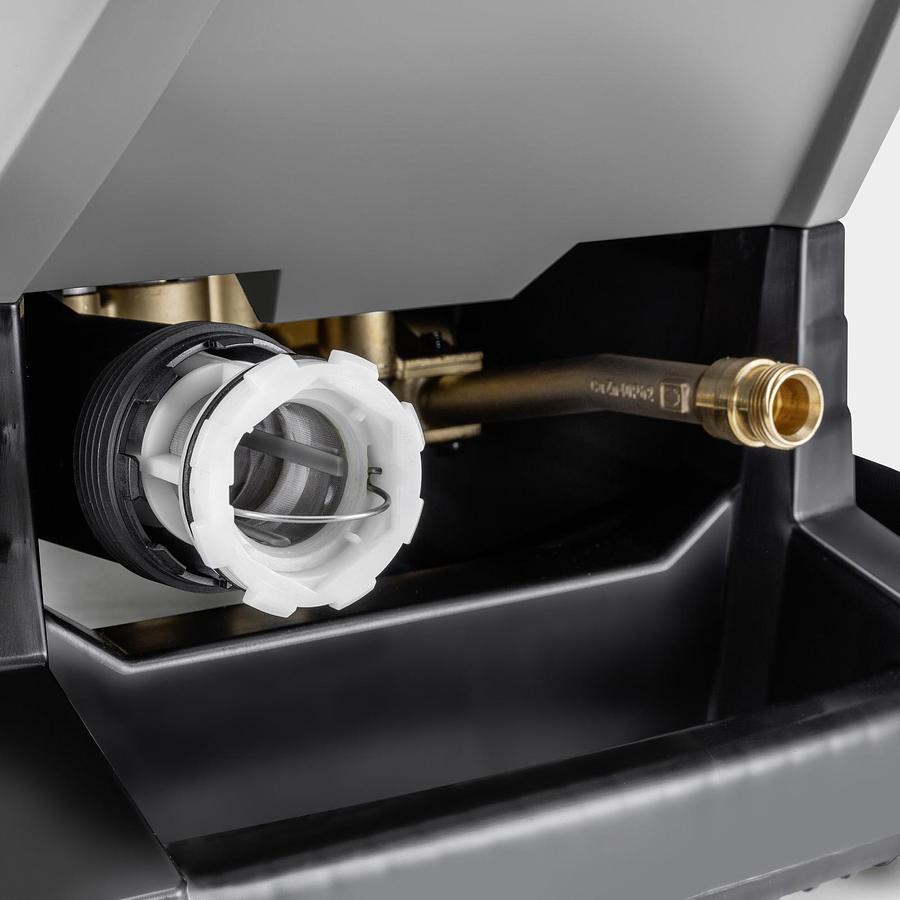

| Water inlet | 1″ |
| Colour | anthracite |
| Weight (with accessories) (kg) | 69,8 |
| Weight incl. packaging (kg) | 78,1 |
| Dimensions (L × W × H) (mm) | 607 x 518 x 1063 |
Description
The HD 13/18-4 S cold water high-pressure cleaner impresses with premium quality, high performance and helpful assistance systems. Designed for ergonomic working and maximum portability.

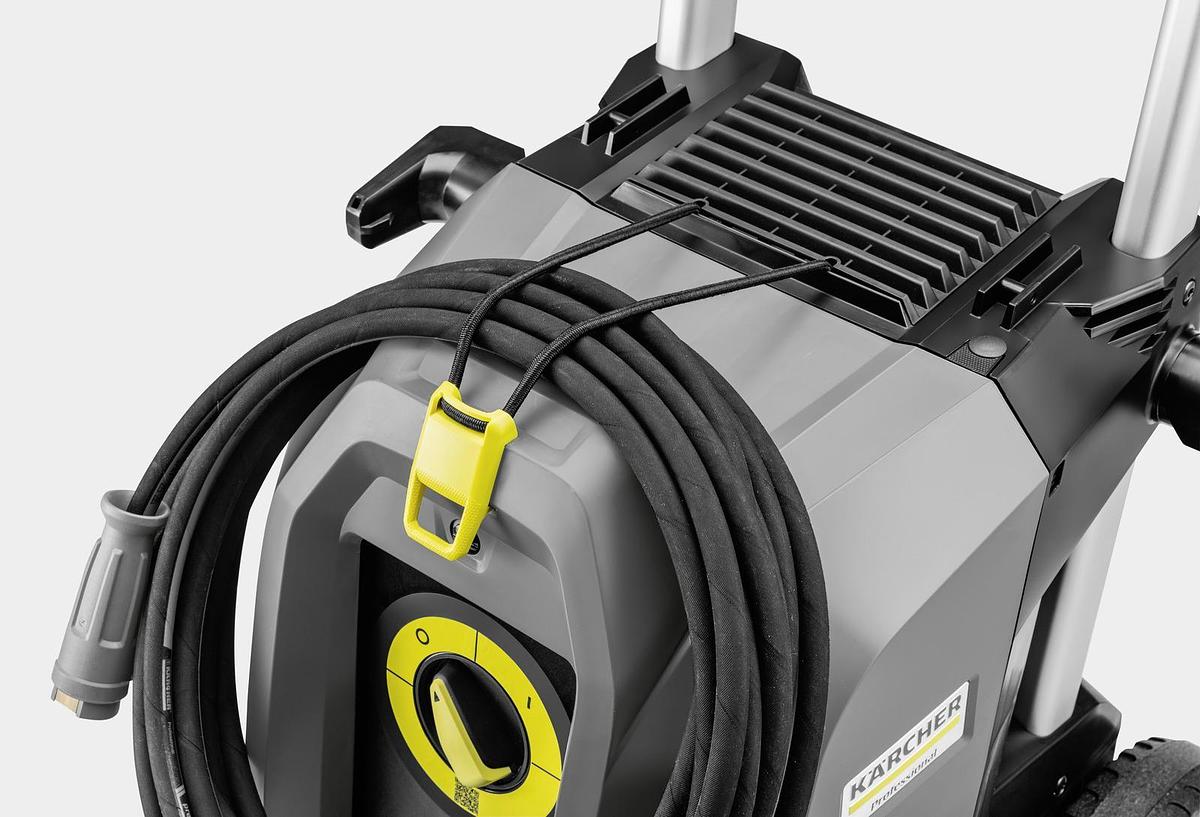

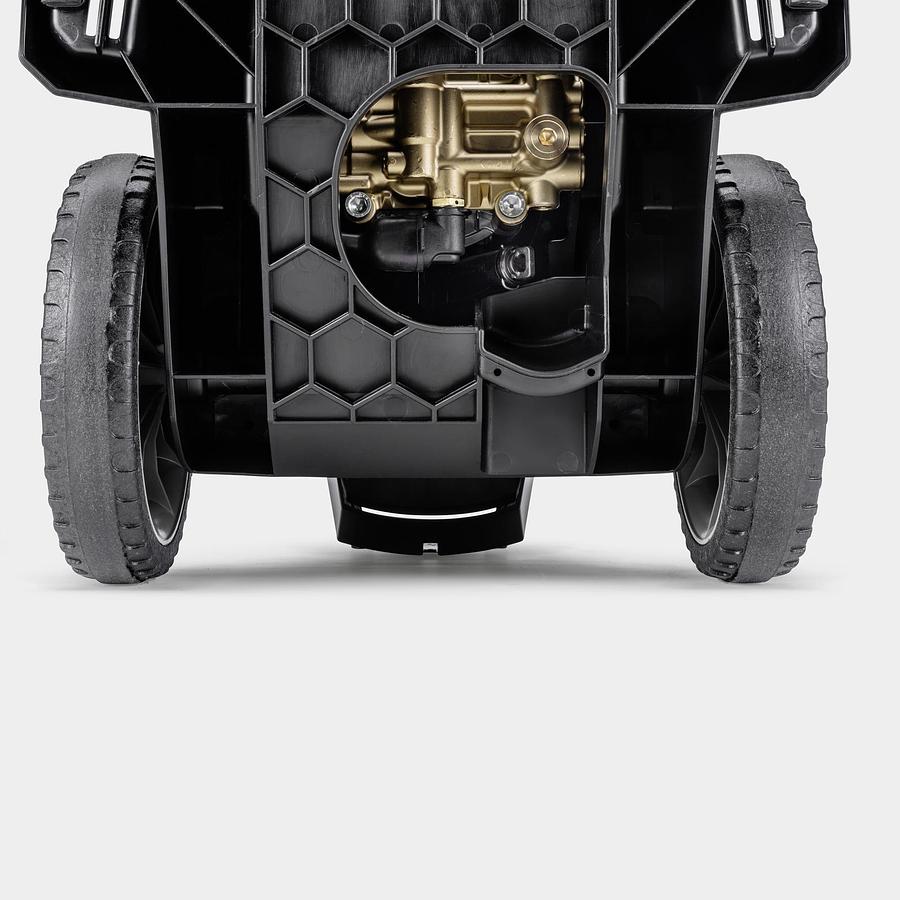

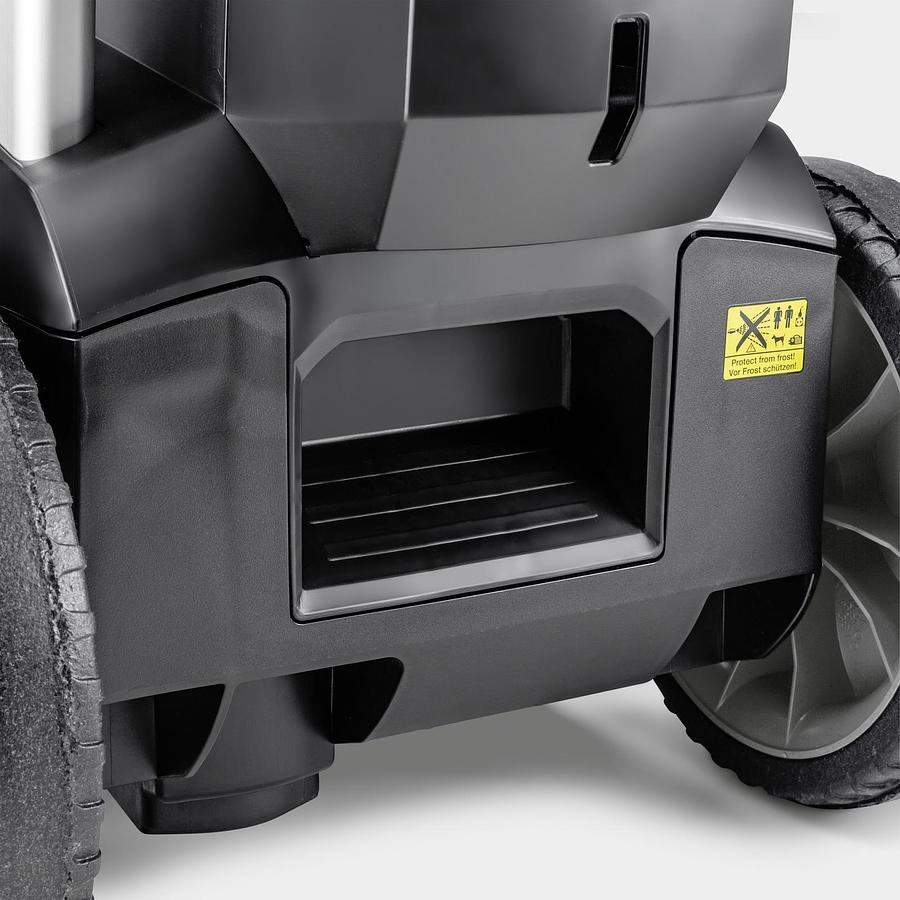

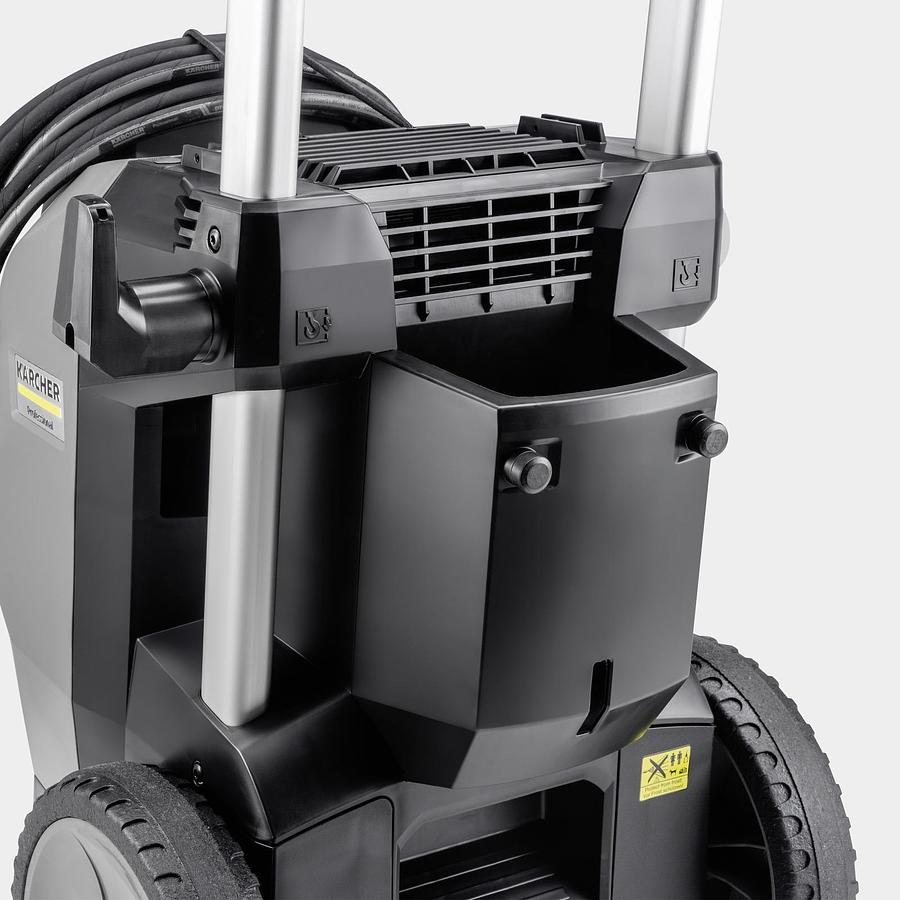

The cold water high-pressure cleaner HD 13/18-4 S enables ergonomic operation. Operation is carried out via the EASY!Force Advanced gun. The device is equipped with a rotatable 1050-millimeter stainless steel lance. Thanks to Servo Control, pressure and water volume can be regulated directly on the gun/lance. Assistance systems and an LED status display support operability. The machine contains a swashplate pump with stainless steel pistons and a brass cylinder head. A slow-running 4-pole motor with water and air cooling drives the HD 13/18-4 S. Integrated aluminum frame carriers form the chassis, which offers the possibility of crane loading. The vertical structure according to the upright concept supports mobility. The motor and pump unit are installed vertically. The device features accessory storage with a kangaroo pocket and adjustable hooks.
Features and benefits
Compact upright design concept based on vertical arrangement of motor and pump unit
Small footprint and space-saving proportions.Easy to manoeuvre and transport.Maximum stability ensures a stable footing for the machine.4-pole low-speed motor with air-water cooling system, solid pump with stainless steel pistons and brass cylinder head
Long service life and low maintenance costs.High performanceWith suction feature and up to 60 °C water temperature.Intelligently designed service concept facilitates quick operations on site

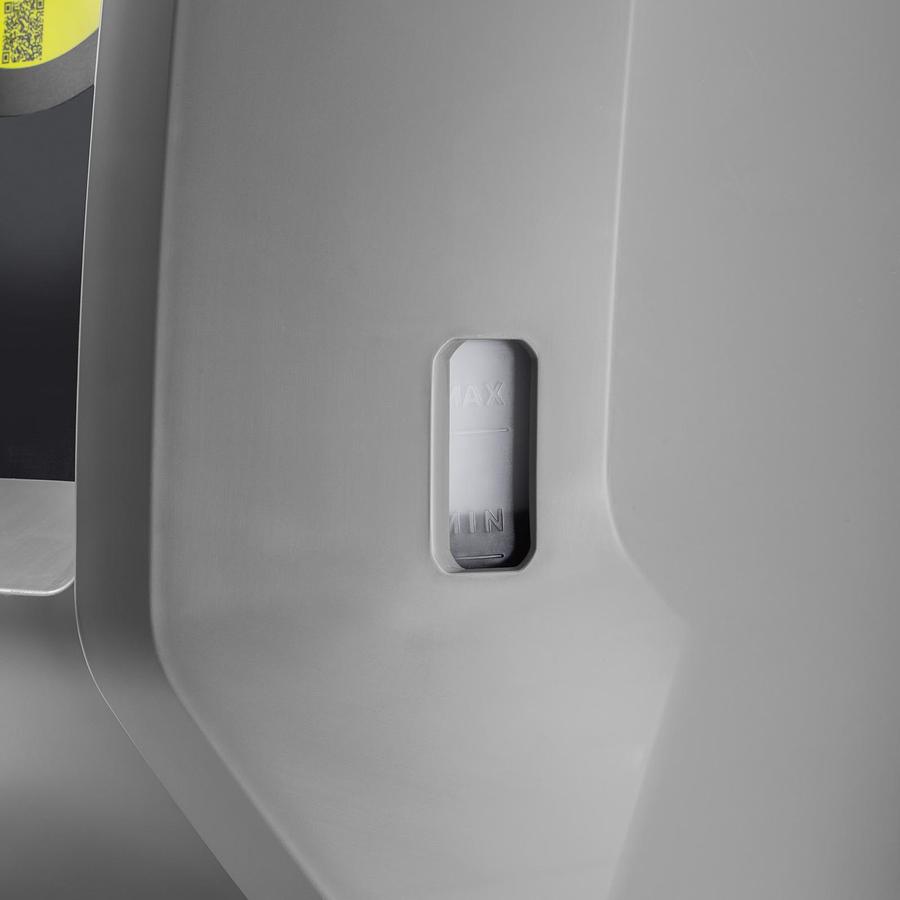

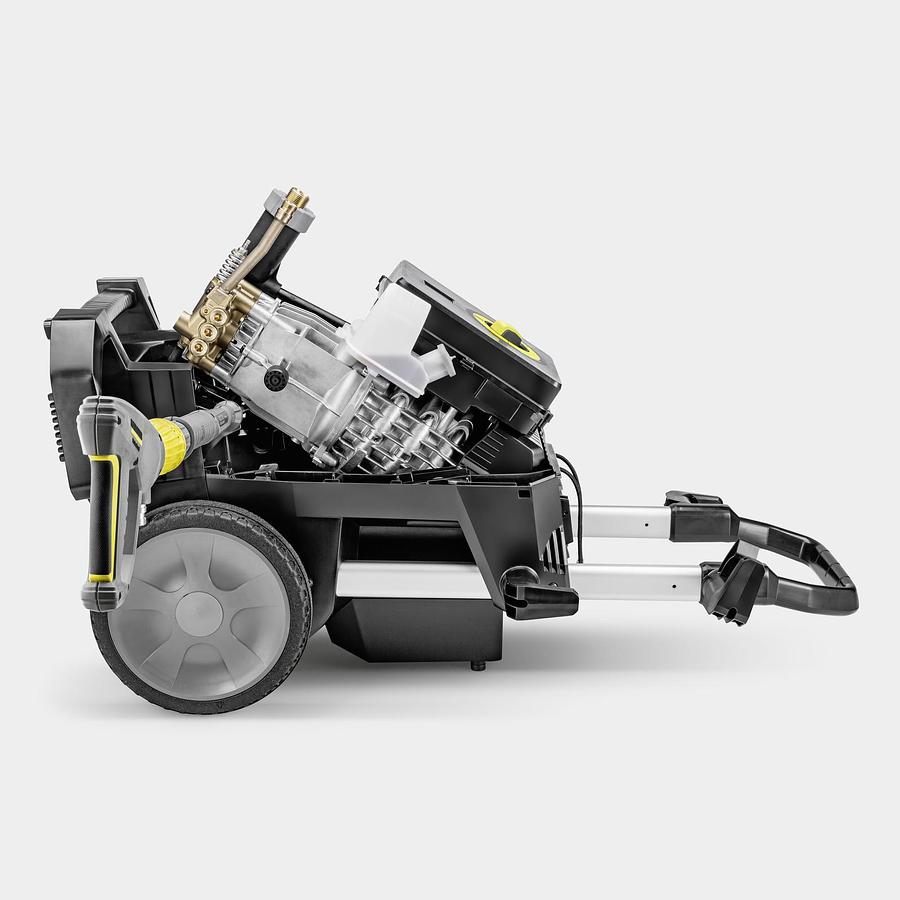

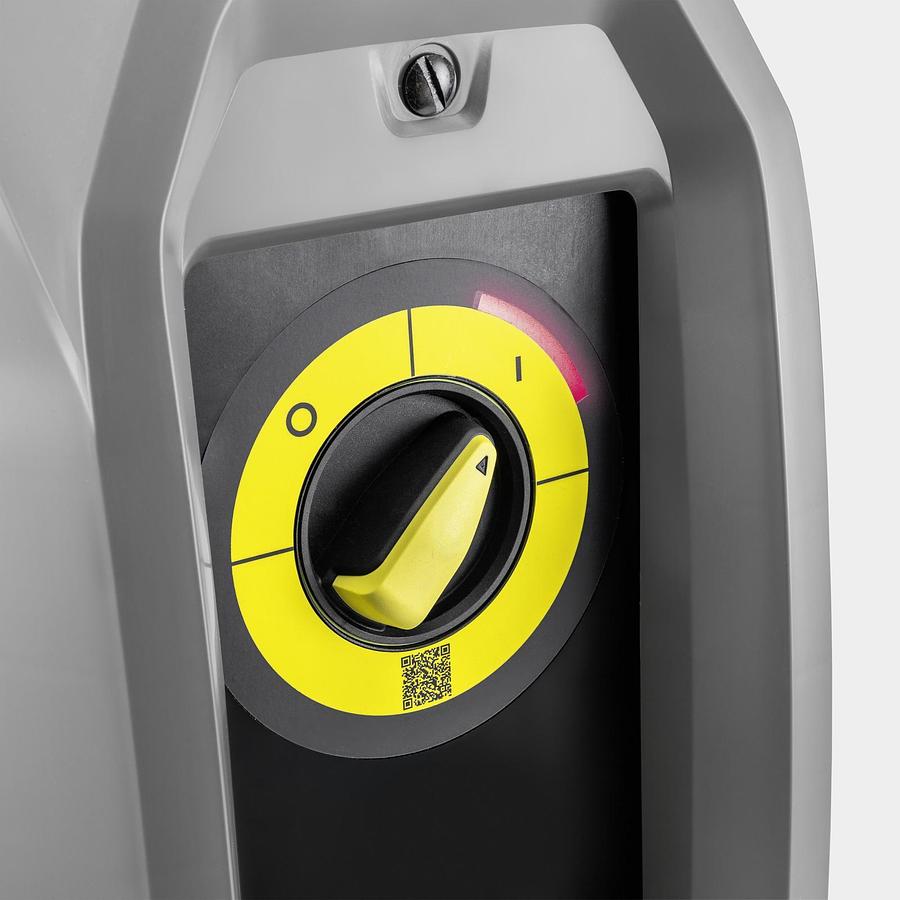

Convenient oil fill level display and oil drain hole integrated in the chassis.Modular construction, comprising pump, motor and control cabinet.Assistance systems and LED status display
Wide-ranging accessories with EASY!Lock
Extensive range of accessories and attachment kits
Scope of supply
Equipment
