High-pressure cleaner HD 13/18-4 S Plus

or
Call (914) 738-4400

Specifications

ManufacturerKaercher
ConditionNew
Number of current phases (Ph)3
Voltage (V)376 - 424
Frequency (Hz)50
Flow rate (l/h)700 - 1300
Inlet temperature (°C)60
Working pressure (bar)50 - 180
Max. pressure (bar)250
Connected load (kW)8,8
Power cable (m)5
Nozzle size075
Water inlet1″
ColourAnthracite
Weight (with accessories) (kg)70,3
Weight incl. packaging (kg)78,6
Dimensions (L × W × H) (mm)607 x 518 x 1063

Description

The HD 13/18-4 S Plus cold water high-pressure cleaner impresses with high performance and quality. Assistance systems and Vibrasoft rotary nozzle designed with ergonomics in mind.

The cold water high-pressure cleaner HD 13/18-4 S Plus features the Kärcher EASY!Force Advanced gun. Pressure and water volume can be adjusted at the Servo-Control regulator between the lance and gun, which allows the pressure to be adjusted without changing the nozzle. A Vibrasoft rotary nozzle is included in the scope of delivery. The device is equipped with assistance systems and an LED status display. A swashplate pump with stainless steel pistons and a brass cylinder head as well as a 4-pole motor with water and air cooling are installed. The chassis with integrated aluminum frame carriers is designed for crane loading. The motor and pump unit are installed vertically (upright concept). The device also offers storage options with a kangaroo pocket and adjustable hooks.

Features and benefits

Compact upright design concept based on vertical arrangement of motor and pump unit

Small footprint and space-saving proportions.Easy to manoeuvre and transport.Maximum stability ensures a stable footing for the machine.

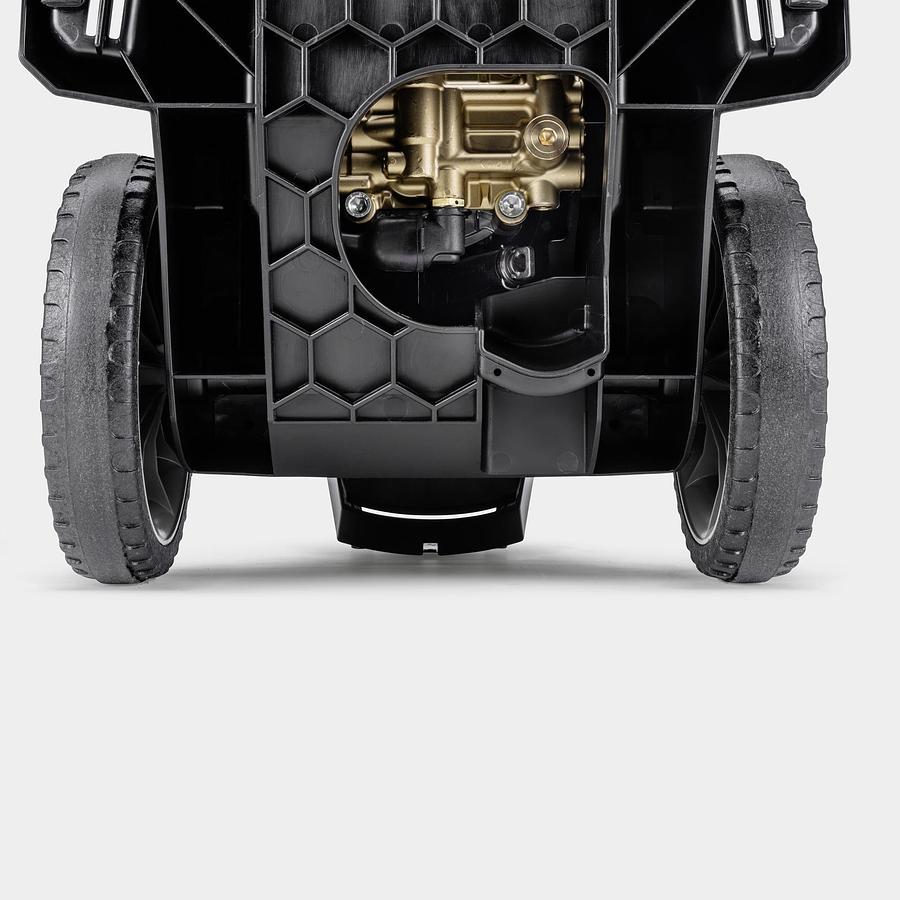

4-pole low-speed motor with air-water cooling system, solid pump with stainless steel pistons and brass cylinder head

Long service life and low maintenance costs.High performanceWith suction feature and up to 60 °C water temperature.

Ergonomic Vibrasoft Dirt Blaster

Reduces vibrations by up to 30%.Reduces volume and noise level.Rotary nozzle takes the hard work out of extensive cleaning tasks.

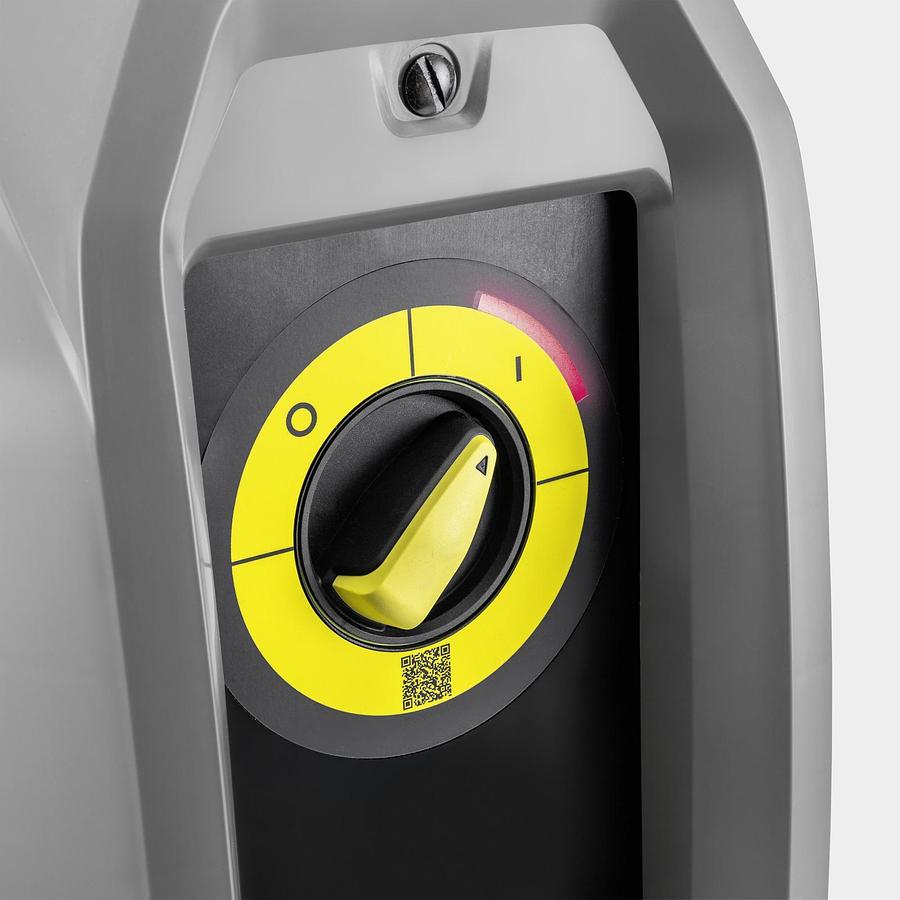

Assistance systems and LED status display

  • Integrated electronics system for machine monitoring.
  • Automatic switch-off in case of low voltage range or overvoltage.
  • Switches off in case of leaks or phase failure.

    • Intelligently designed service concept facilitates quick operations on site

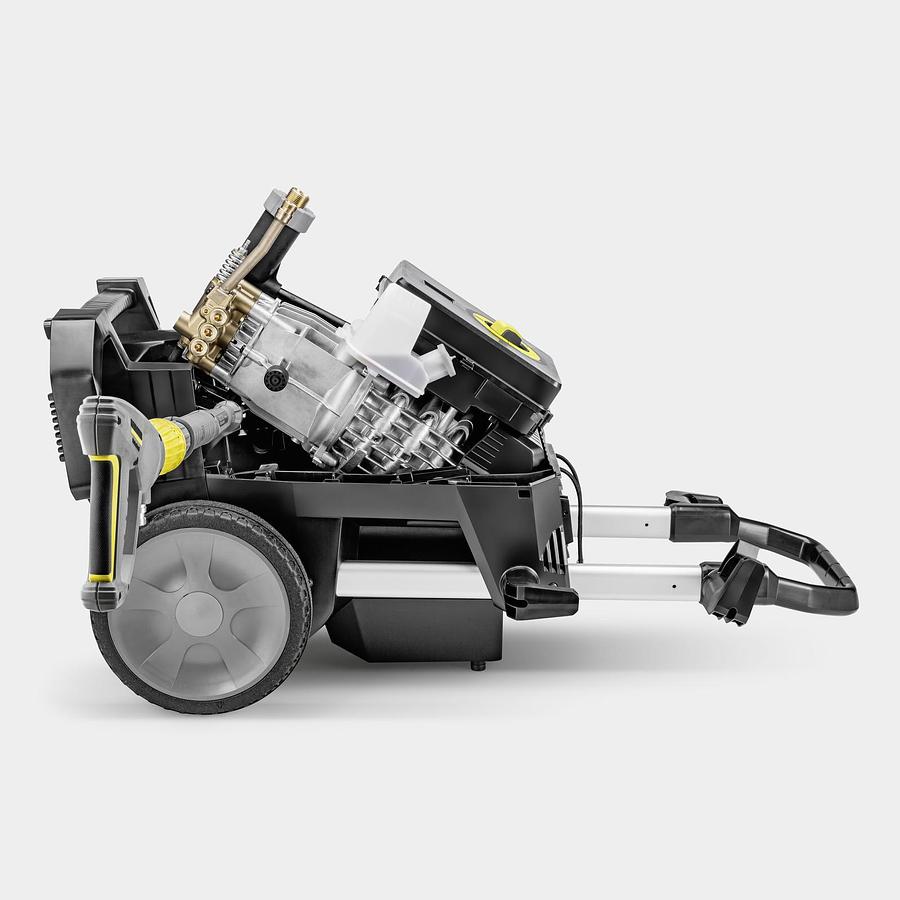

  • Swivelling pump head.

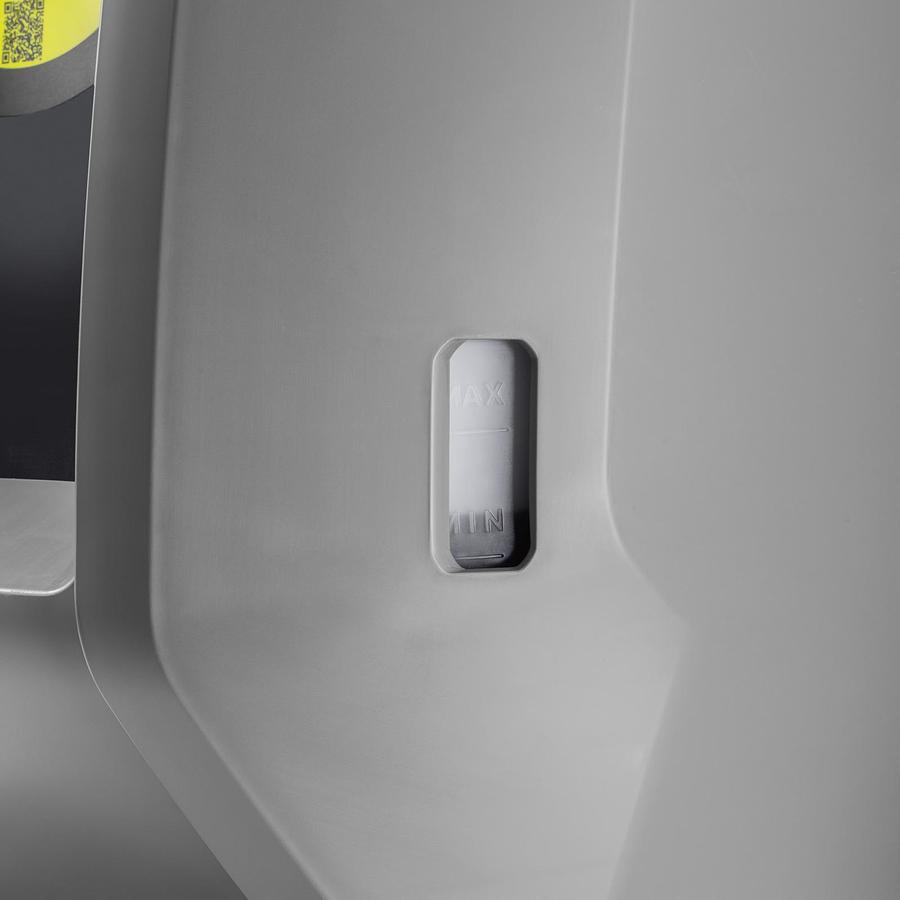

  • Convenient oil fill level display and oil drain hole integrated in the chassis.
  • Modular construction, comprising pump, motor and control cabinet.

    • Wide-ranging accessories with EASY!Lock

  • Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.
  • EASY!Force Advanced for fatigue-free work without any holding force.
  • Rotating 1050 mm stainless steel lance.

    • Extensive range of accessories and attachment kits

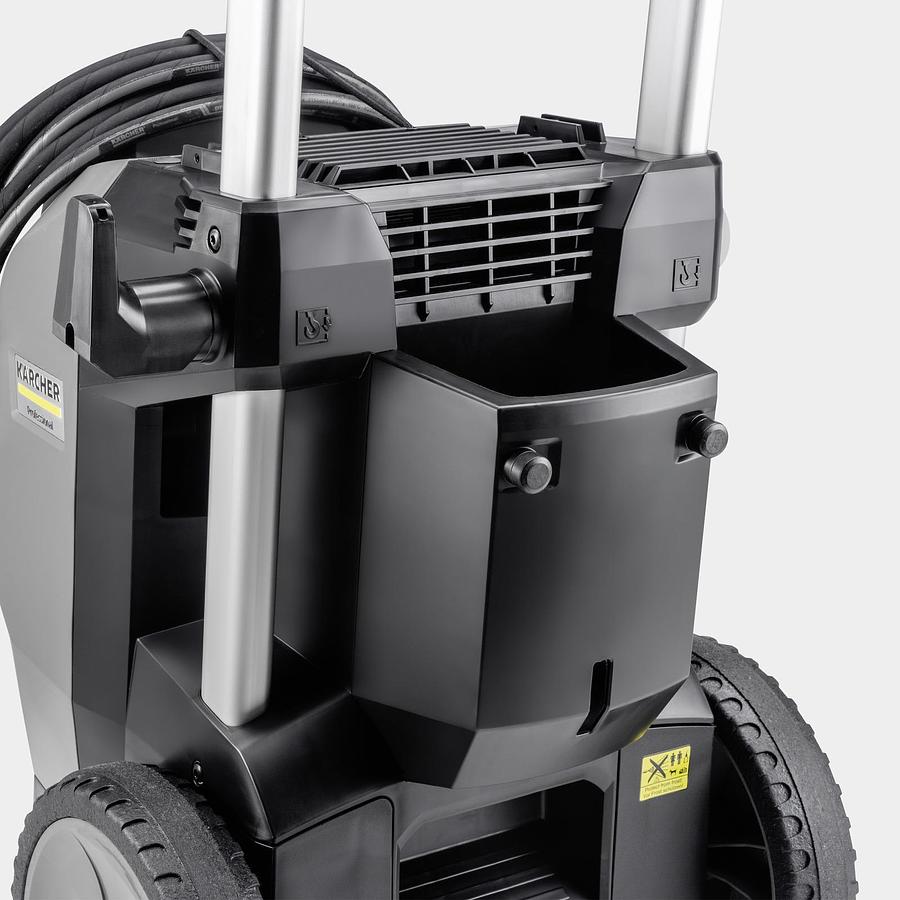

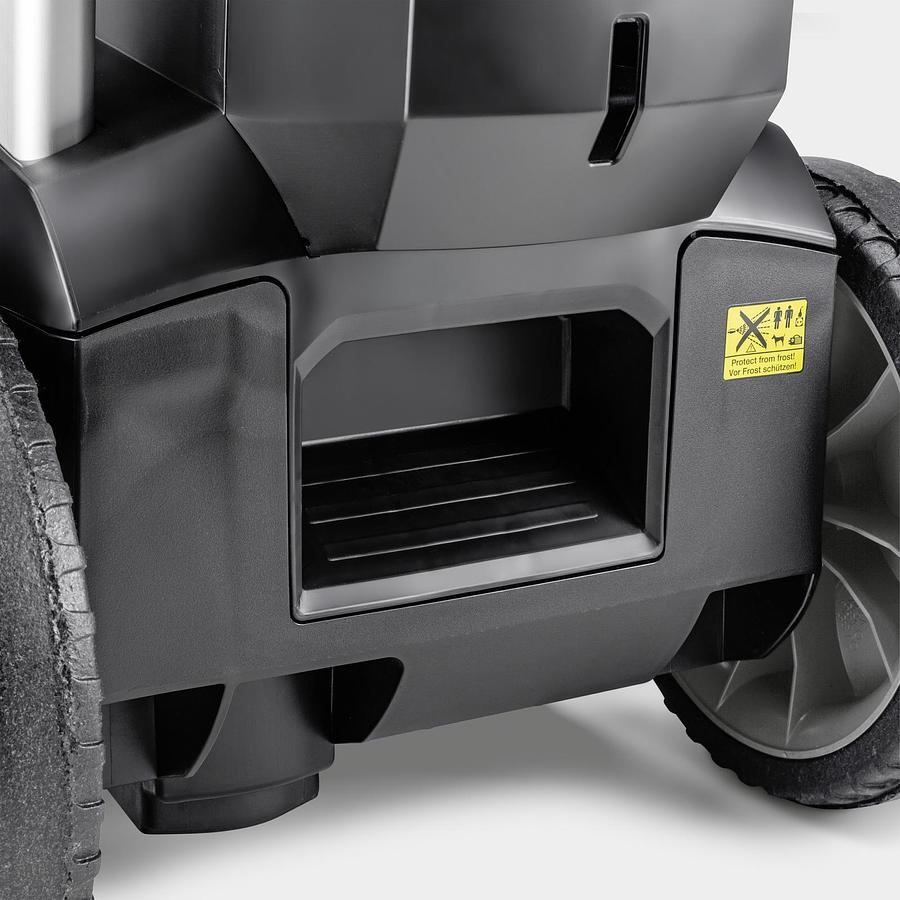

  • Stowage compartment.
  • Adjustable hooks, e.g. for storing second lance or electric cable.

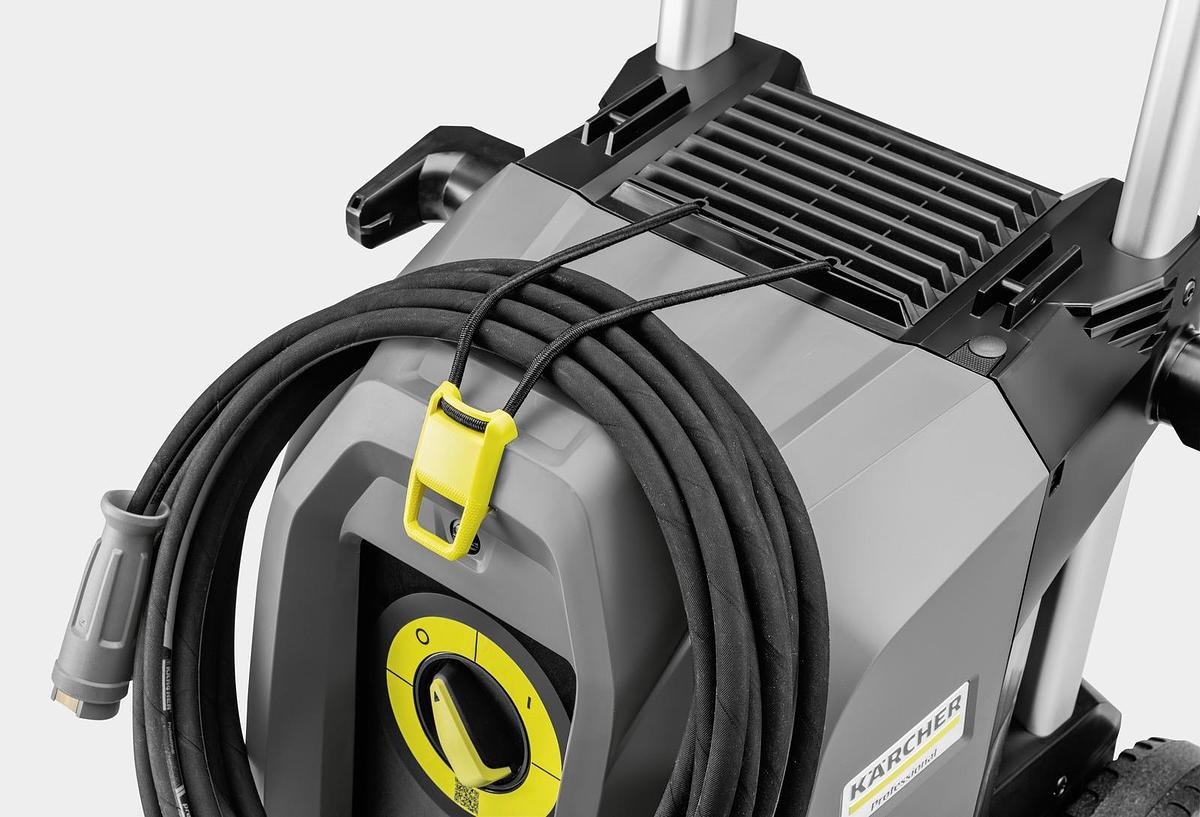

  • Storage for high pressure hose.

    • Scope of supply

  • Spray gun: EASY!Force Advanced
  • Spray gun with soft grip padding
  • High-pressure hose length: 10 m
  • High-pressure hose type: Premium quality
  • Spray lance: 1050 mm
  • Power nozzle
  • Dirt blaster
  • Servo Control

    • Equipment

  • 4-pole three-phase motor with air and water cooling
  • 3-piston axial pump: with stainless steel pistons
  • Pressure cut-off

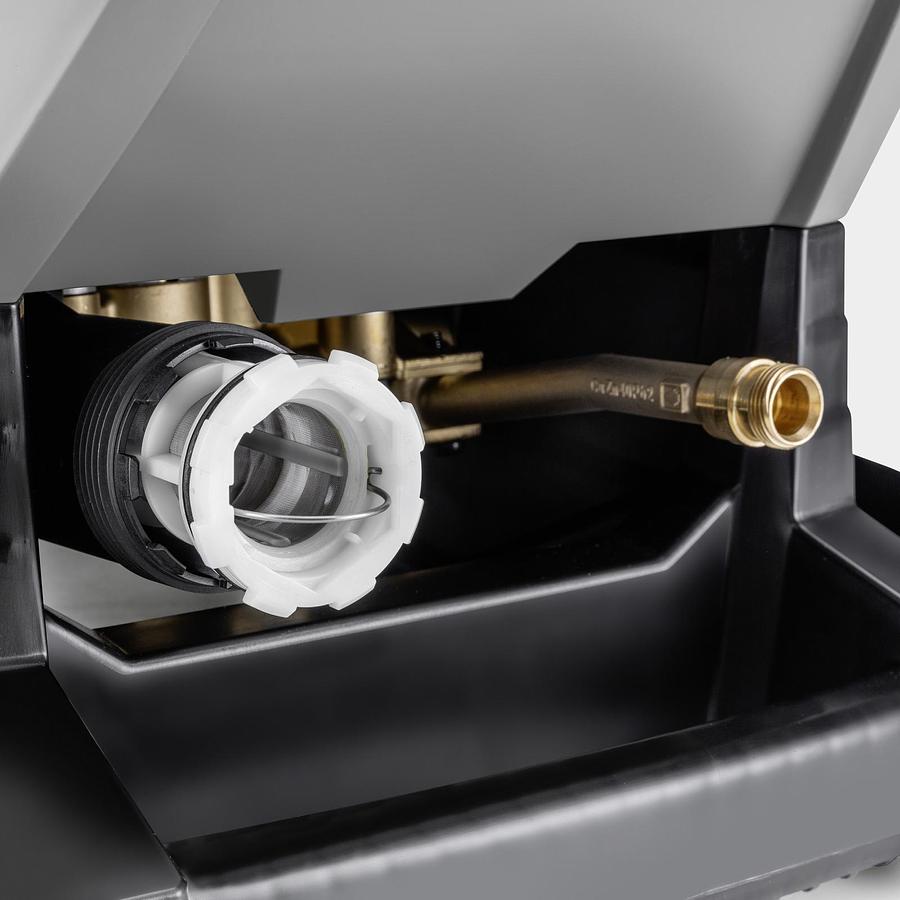

  • Integrated water fine filter
  • Motor protection electronics with LED display
  • Sight glass for oil level
  • Brass water inlet
    • Show All
