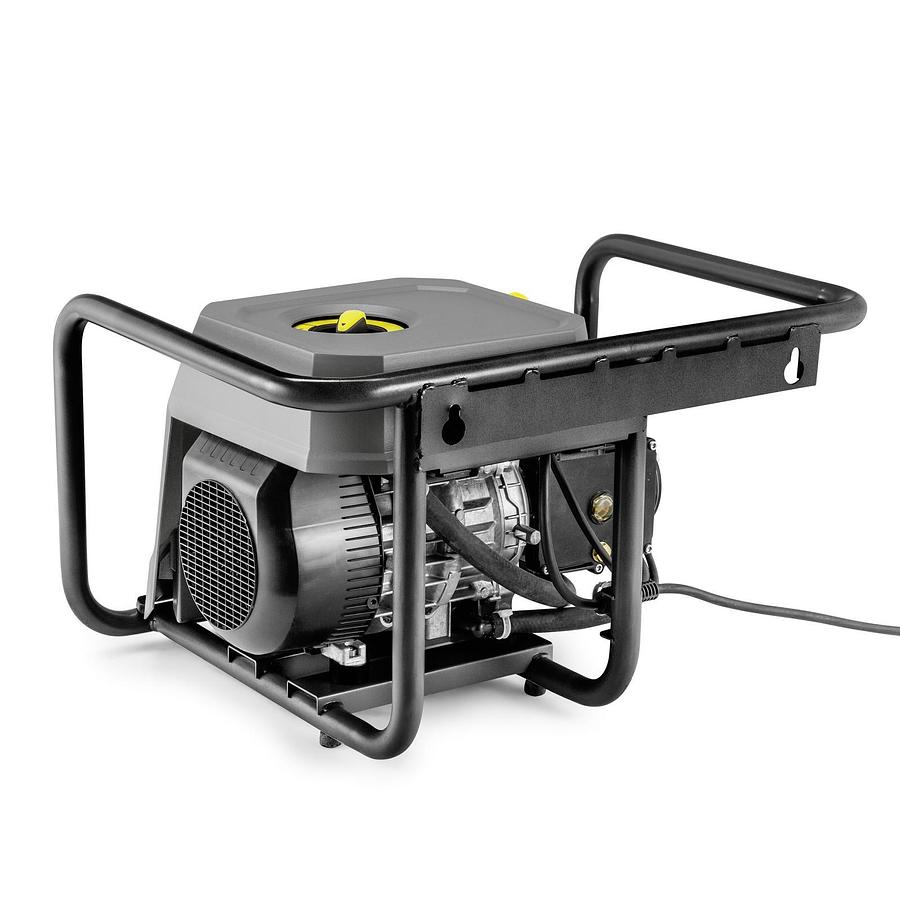

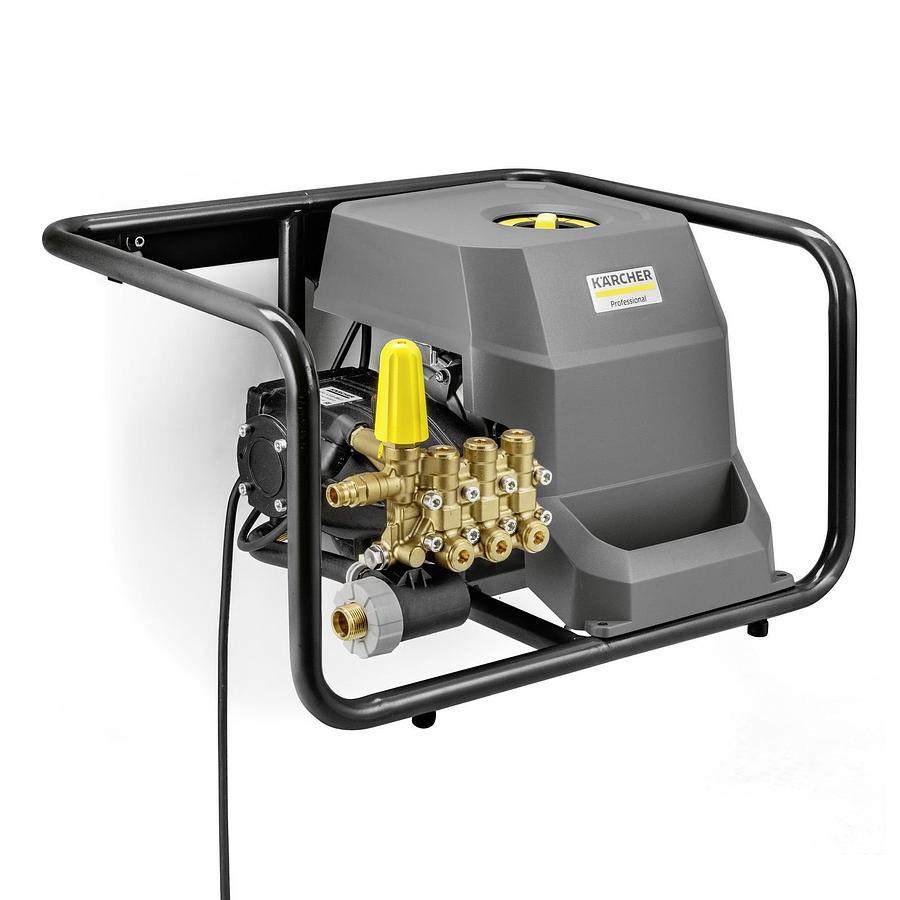

High-pressure cleaner HD 13/18-4 S ST Classic

Developed especially for tough, stationary continuous use and optimum cleaning results: the HD 13/18-4 S St Classic cold water high-pressure cleaner. Very easy installation, maintenance and operation.

Designed for continuous stationary operation: The HD 13/18-4 S St Classic cold water high-pressure cleaner from Kärcher delivers 8.8 kW of power, generates an operating pressure of up to 180 bar, and provides a flow rate of 1300 l/h. The standard scope of delivery includes a trigger gun, lance, 10-meter high-pressure hose, and power nozzle – each equipped with the EASY!Lock quick-release fastener. The unit features an adjustable crankshaft pump with a brass cylinder head as well as a low-speed, 4-pole motor with automatic shutdown and combined air/water cooling. An integrated water filter protects the pump against contamination. Service and maintenance points are directly accessible, and the steel frame can be mounted on walls or floors.

Features and benefits

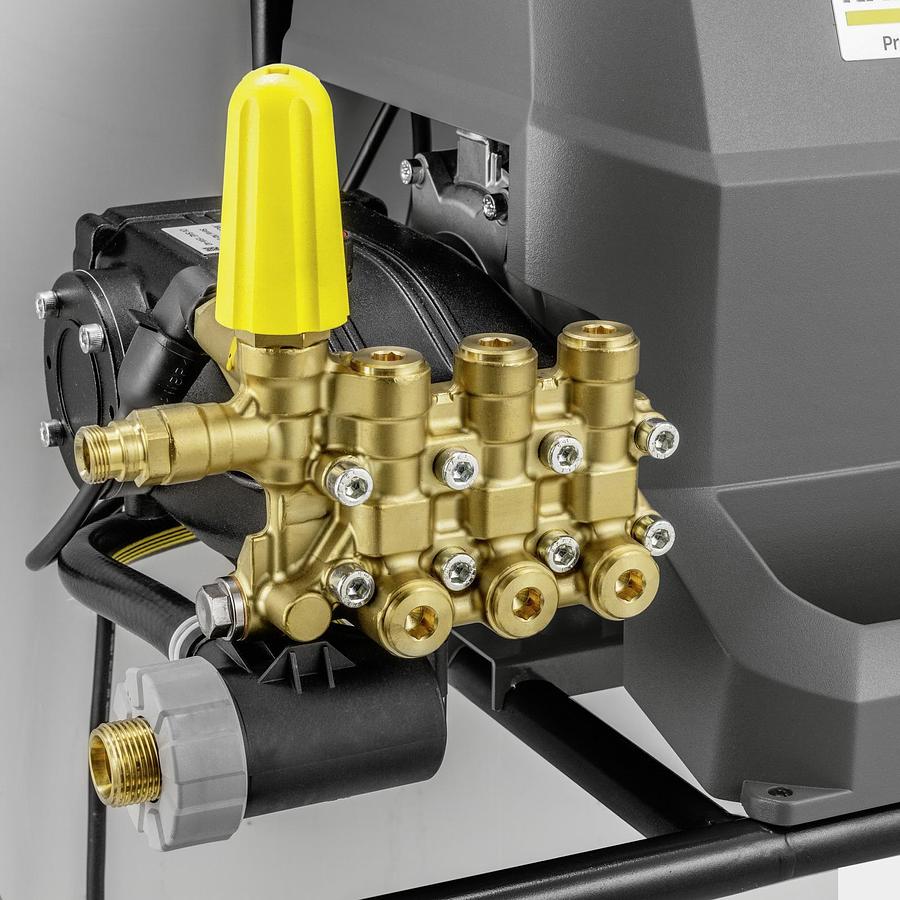

Crankshaft pump with brass cylinder head and pistons with ceramic sleeves

High performanceLong service life and low maintenance costs.With suction feature and up to 60 °C water temperature.

Sturdy, stationary design.

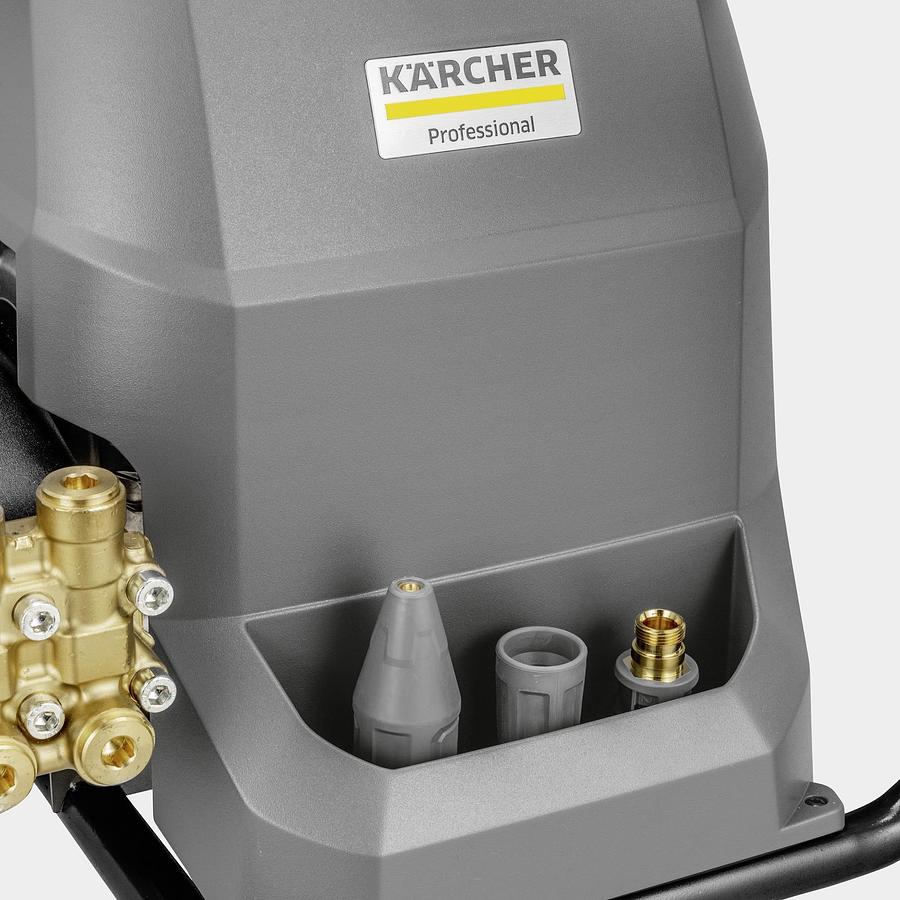

Tubular steel frame for machine protection during daily operation.Sturdy tubular steel frame protects all components.Integrated storage space for accessories.

Classic accessories with EASY!Lock connections

Quick set-up and pack-up plus easy accessory replacement.Robust accessories.Easy to use

4-pole low-speed motor with air-water cooling system, solid pump with stainless steel pistons and brass cylinder head

Tried-and-tested high-quality Kärcher components guarantee a long lifetime.

Built to last, high reliability.

Ausgelegt für den kontinuierlichen Einsatz bei optimierter Service zugänglichkeit.

Clear machine design

Large water filter to protect the pump.

Pressure and water flow can be adjusted on the pump itself.

Filling level and quality of the oil can be checked easily using the inspection glass and dipstick.

Structured control elements and service-friendly design.

Integrated water filter can be removed and cleaned without any tools.

Good accessibility for easy service and maintenance.

Simple operation.

High flexibility

Extensive range of accessories for a wide range of applications.

The extensive accessory line provides for ergonomic and economical cleaning solutions for numerous applications.

Minimum installation effort.

Scope of supply

High-pressure hose length: 10 m

High-pressure hose specification: DN 8, 315 bar

Spray lance: 840 mm

Power nozzle

Equipment

Crankshaft pump with ceramic pistons

4-pole three-phase motor with air and water cooling

Pressure cut-off

Integrated water fine filter

Sight glass for oil level

Brass water inlet
