Flat suction submersible pump SP 17.000 Flat Level Sensor

or
Call (914) 738-4400

Specifications

ManufacturerKaercher
ConditionNew
Rated input power (W)550
Max. flow rate (l/h)< 17000
Delivery temperature (°C)max. 35
Delivery head (m)9
Pressure (bar)max. 0,9
Flat pick-up to a depth of (mm)1
Grain size (mm)max. 5
Immersion depth (m)max. 7
After-running time (s)15
Min. residual water, manual (mm)1
Residual water height (mm)1
Connection threadG1 1/2
Pressure-side connection threadG1/2 internal thread
Power cable (m)10
Voltage (V)230 - 240
Frequency (Hz)50
ColourYellow
Dimensions (L × W × H) (mm)238 x 293 x 356
Weight without accessories (kg)6
Weight incl. packaging (kg)7,3

Description

Perfect for max. 17,000 litres of clean water per hour: The powerful submersible pump SP 17,000 Flat Level Sensor with 1 mm flat pick-up, level sensor and Automatic/Manual switch. Includes prefilter.

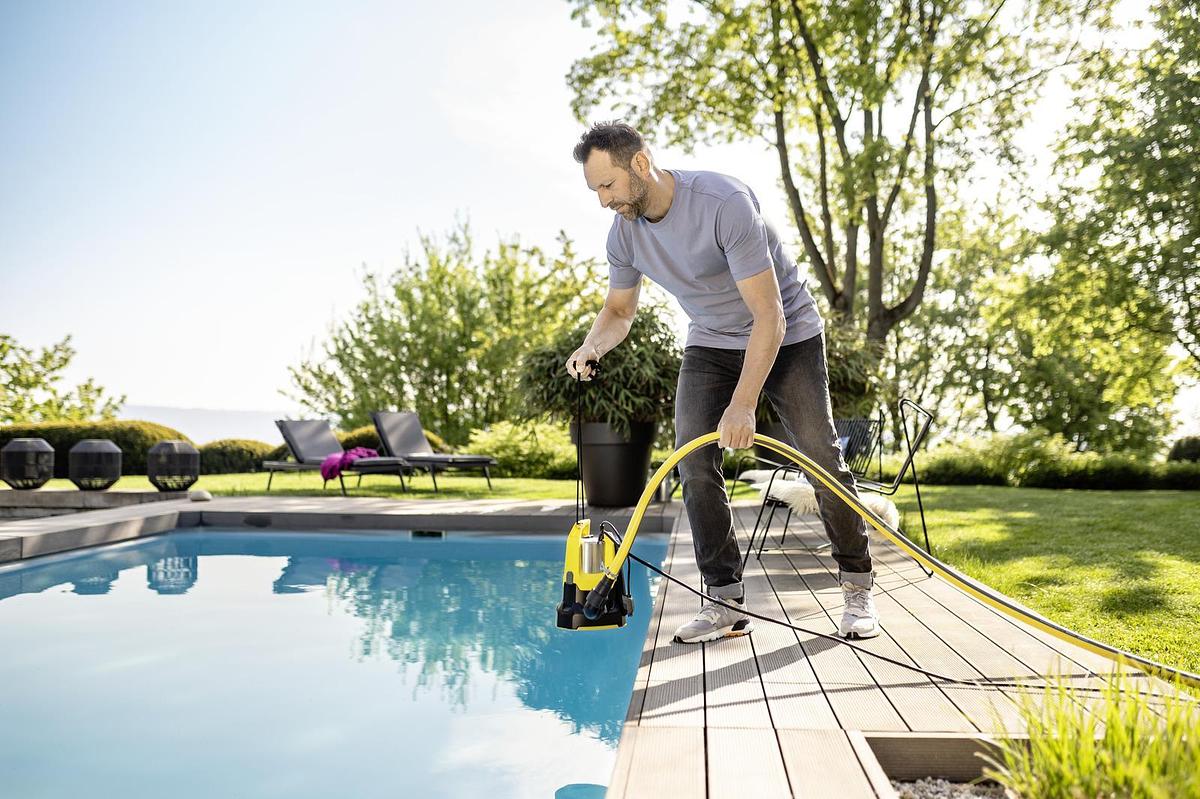

The Kärcher SP 17.000 Flat Level Sensor clear water submersible pump has a flow rate of up to 17,000 liters of clear to slightly dirty water per hour and is suitable for pools, drainage shafts, and household water damage. An included stainless steel prefilter protects the pump impeller against heavier debris. The stainless steel housing features a slide ring sealing. This flat-suction submersible pump is equipped with an infinitely adjustable level sensor that starts the pump upon contact with water. Foldable feet allow the pump to start operating at a water level of just 7 millimeters. In manual mode, the pump can be set to continuous operation to achieve a residual water level of 1 millimeter (wiped-dry result). The Quick Connect fitting allows for the direct connection of 1", 1 1/4", and 1 1/2" hoses. Registering via the Home & Garden app allows for a warranty extension to 5 years.

Features and benefits

Ceramic face seal.

For an extra long lifetime.

Level Sensor

For continuously variable definition of the switch-on and switch-off points of the pumps.

Quick Connect

Connection thread for quick and uncomplicated connection of 1", 1 1/4" and 1 1/2" hoses.

Foldable legs

  • Switching from normal operation with a higher capacity to 1 mm flat pick-up with a mop dry result.

    • Automatic venting

  • The pump reliably starts working in manual mode from a water level of 7 cm.

    • Auto/manual switch

  • For switching between automatic and manual mode.

    • Comfortable carrying handle

  • Comfortable to hold and can also be used as a rope holder.

    • Sturdy and easy to attach stainless steel prefilter

  • Protects the pump against excessively heavy soiling and thus prevents the pump impeller from becoming blocked.

    • Scope of supply

  • Removable stainless steel pre-filter
  • Hose connection piece: 1″, 1 1/4″, 1 1/2″ incl. non-return valve

    • Equipment

  • Comfortable carrying handle
  • Easy hose connection thanks to Quick Connect
  • Switching between manual/automatic operation: Switch on the pump
  • Switch to flat pick-up
  • Level sensor: Continuous switching level definition
  • Ceramic face seal.
  • In manual operation, the pump runs continuously to ensure the minimum quantity of residual water
    • Show All
