F_9GT1645-282A X AVAL V460 H60
Specifications
| Manufacturer | Nilfisk |
| Condition | New |
| Product number | 4531700550 |
| Voltage (V) | 400 |
| Frequency (HZ) | 50 |
| Insulation class | 44 |
| Rated power (W) | 0.4 |
| Airflow max. (m³/h) | 80 |
| Vacuum max (KPA) | 13 |
| Sound pressure level (dB(A)) | 53 |
| Container capacity ( L ) | 160 |
| Main filter type | HEPA SILICON |
| Main filter area (CM²) | 2500 |
| Upstream hepa filter h14 (CM²) | 2500 |
| Level sensors n° | 2 |
| Inlet (MM) | 40 |
| Dimensions lxwxh (MM) | 495 x 528 x 1350 |
| Weight (KG) | 37 |
| Hopper Ø (mm) | 450 |
Description

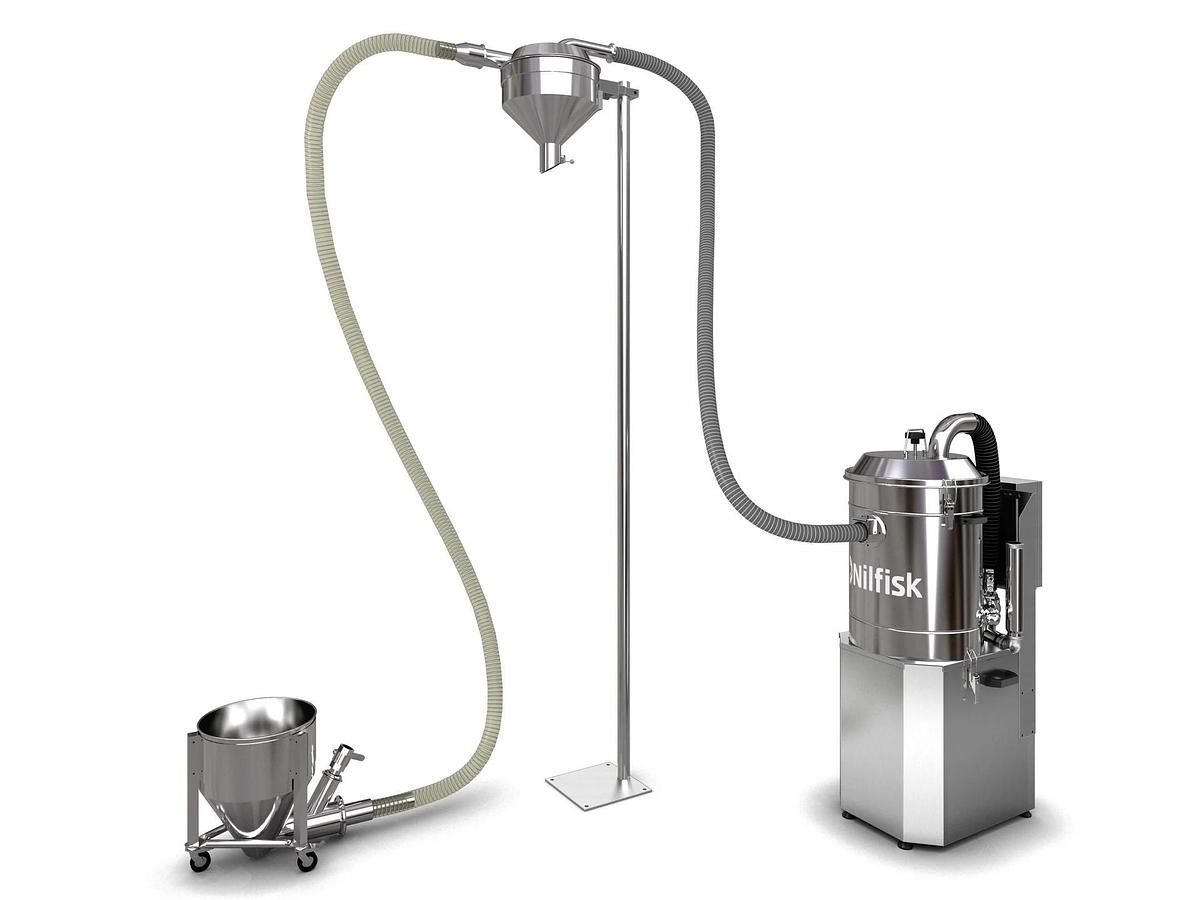

The Nilfisk 9GT is a three-phase pneumatic conveyor designed for automatic material processing. Thanks to the high modularity of the range, the 9GT can be custom configured - from a simple conveyor (manually started when production initiates), to a fully automated and process-integrated machine.
Nilfisk has been designing solutions for the pharmaceutical industry for more than 30 years, and its capsule conveyor was one of the first designed for pharmaceutical processing. Now, the 9505-Series capsule conveyor has been redesigned, with a host of upgraded features.
The 9-Series capsules conveyor is also food contact certified, with filter certification and machine directive CE.
Highlighted features include:
The new 9-Series conveyors keep all the best features of the previous model, with upgrades to the current model including:
• VFD motor control
• Conveyance up to 65,000 capsules per minute, without any capsule separation
