F_3CP0322-150A X Z1

or
Call (914) 738-4400

Specifications

ManufacturerNilfisk
ConditionNew
Product number4561700407
Main filter typePTFE CLASS M
Main filter area (CM²)1200
Downstream hepa filter h14 (CM²)2500
Inlet (MM)30
Required pressure (BAR)5/6
Dimensions lxwxh (MM)590 x 400 x 420
Weight - hopper15
Hopper Ø (mm)150

Description

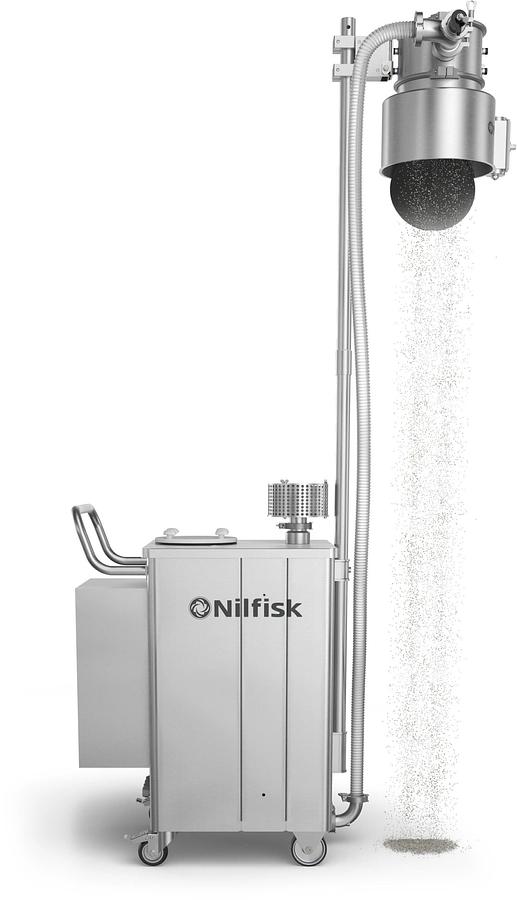

The Nilfisk 3VT series conveyor, is one of the most successful automated processors on the market, boasts an upgraded feature set in its latest model.
Excellent performance in filtration, greater cleaning efficiency, wider discharge and a wide range of accessories, ensures the best performance possible. The 3-Series conveyors are also food contact certified, suitable for combustible dust processing, and machine directive CE, with optional ATEX Z1/21 rating.

The 3-Series is a range of pneumatic conveyors designed to automatically feed process machines (such as capsule filling machines or tablet press with fine powders) and is available pneumatically (with two ejectors and three stages) or electrically driven.

Nilfisk 3-Series: pneumatic conveyors for powder material processing

  • Conveyance processing up to 1500 kg/h*
  • Dense phase conveyance ensures the non-segregation of the mixture (which eliminates the change of the concentration percentage of the different components of the mixture during the convey)
  • Excellent level of filtration for fine powders up to 0.2 µm - for the safety of the operators and hygiene in the working environment
  • GMP design: built with top level materials, such as AISI316L stainless steel, silicone, polyurethane, EPDM, PTFE, Sustarin® for the best level of hygiene and cleanability
  • Compact size and light-weight, allowing for installation even where space is limited
  • Fast and easy disassembly without any tools
  • Wider range of accessories makes for simple, flexible machine set-up
  • Food contact certified, and is also suitable for combustible dust processing - compliant with machine directive CE and a also ATEX Z1/21 marked
    • Show All
