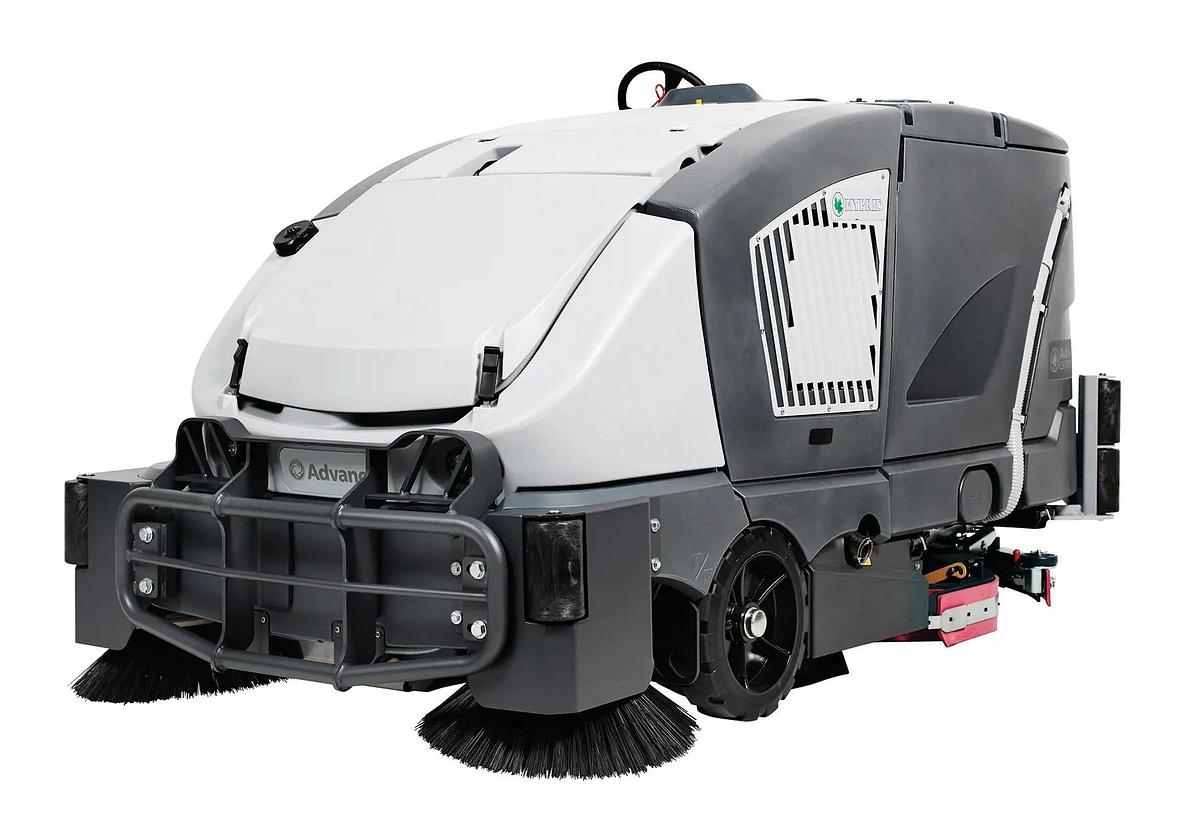

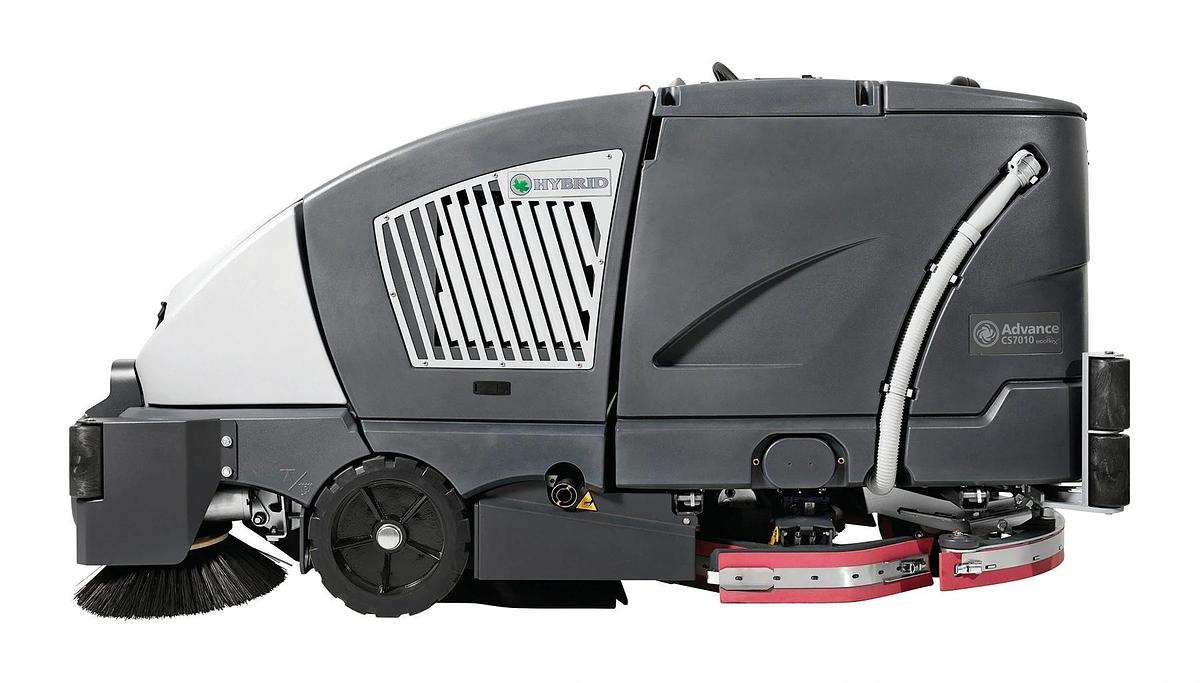

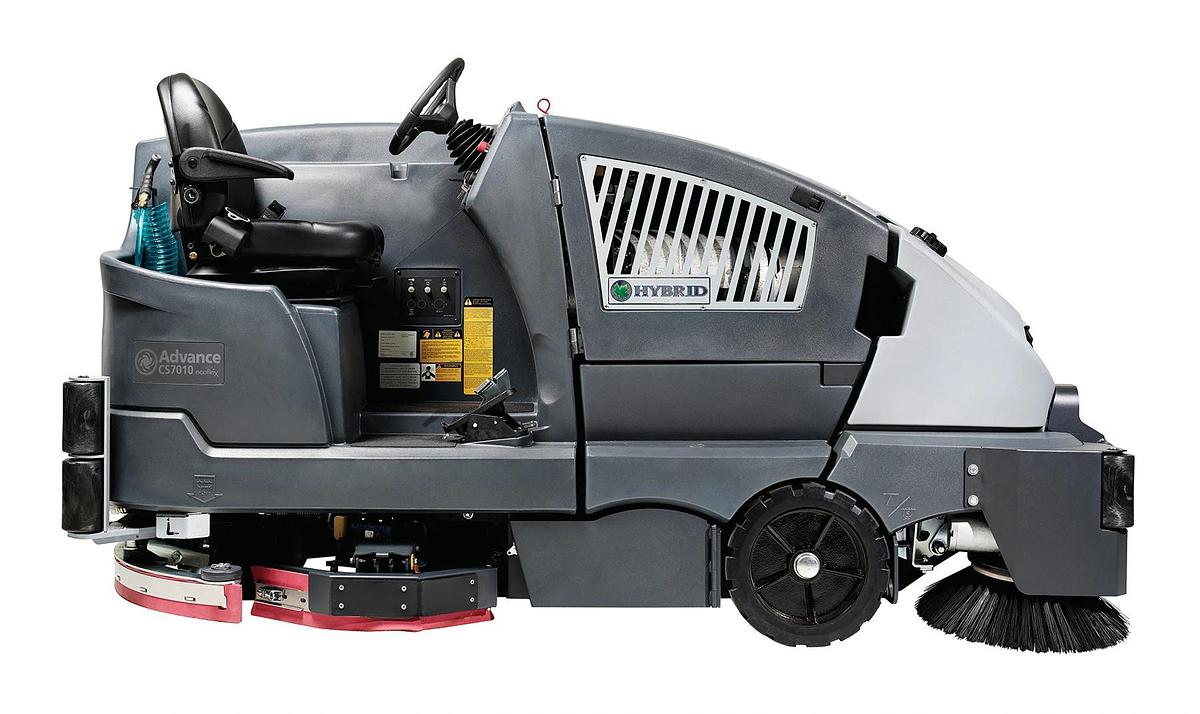

CS7010 48LP ECOFLEX

or
Call (914) 738-4400

Specifications

ManufacturerNilfisk
ConditionNew
Product number56511772
Max sweeping speed (KM/H)3.5 mph (5.6 km/h) w/override capability
Max. transport speed mph (km/h)5.5 mph (8.9 km/h)
Dust control115 ft2 (`10.7 m2) Donalson high-capacity PowerCore® UltraWeb® filter w/synthetic media. Variable frequency automatic filter shaker
VacuumRecovery - Dual vac fan motors capable of 65 in (165 cm) waterlift
Operational run time (hr)Sweeping/Scrubbing2 - LPG - 5.5 hrs. w/32 lb (14.5 kg) tank
Sweeping path w./ dual side brooms (cm)61 in (154 cm) - Squeegee path width is fully swept
Min. aisle turn (cm)104 in (264 cm)
Hopper capacity ft³ (l)7 ft3 (198 L) 300 lb (136 kg)
Brushes/pads qty.3 x 17 in (43 cm) disc
Scrub path in. (cm)48 in (122 cm)
Scrub pressure lbs (kg)Three scrub pressure settings up to 400 lb (182 kg) of down force at maximum setting
Gross vehicle weight lbs (kg)4,676 lb (2,121 kg)
Empty weight3,636 lb (1,649 kg)
Propulsion systemVariable speed brushless A/C drive
Gradeability transport % (DEG)@gross weight—Scrubbing 21% (12 deg.); Sweeping 17.6% (10 deg.)
Main broom36 in (90 cm) x 12.2 in (31 cm)

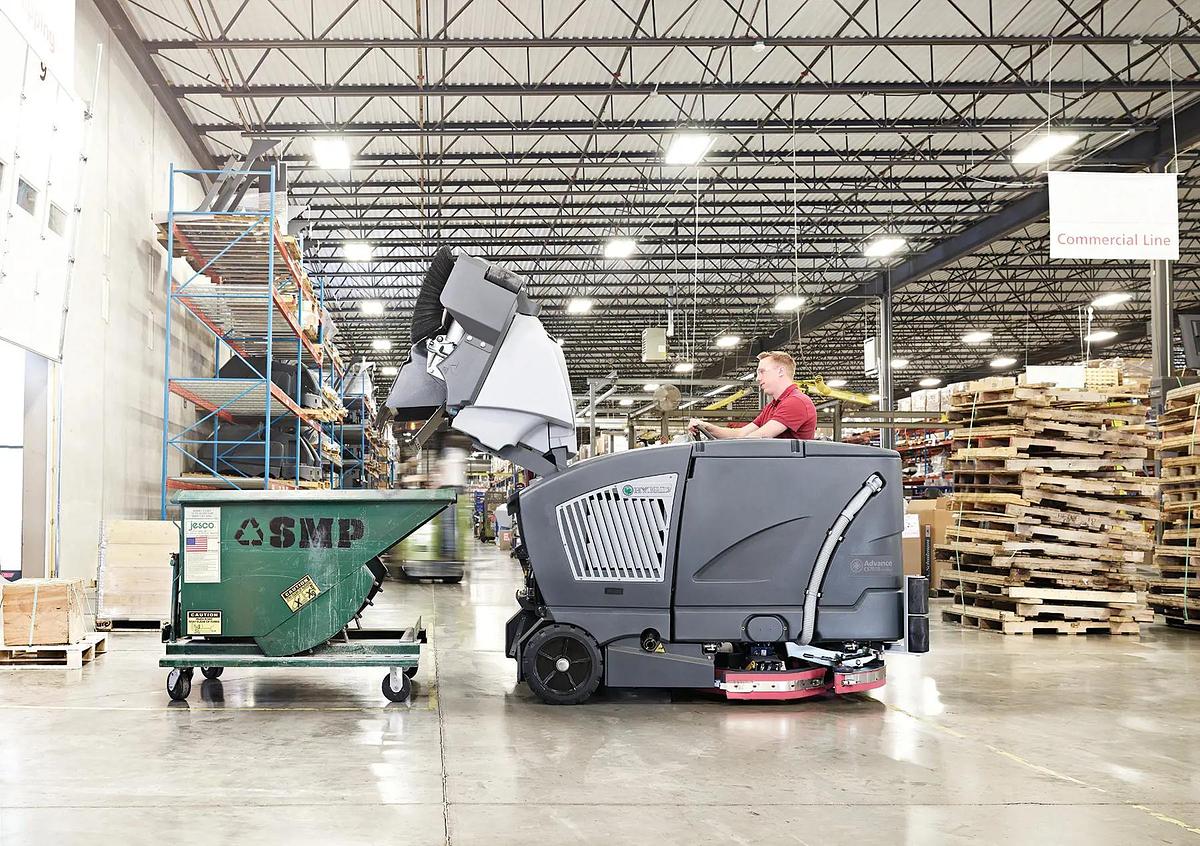

Debris hopper dump height60 in (152 cm)
DustGuard™ Tank Capacity (optional)29 gal (110 L)
Length103 in (262 cm)
Width48 in (122 cm)
Height[59 in (150 cm)] [82 in (208 cm) std. overhead guard] [79 in (201 cm) low clearance overhead guard]
Max. scrub speed3.5 mph (5.6 km/h) w/override capability
Max. scrubbing coverage rate per hour118,600 ft2 (11,000 m2)

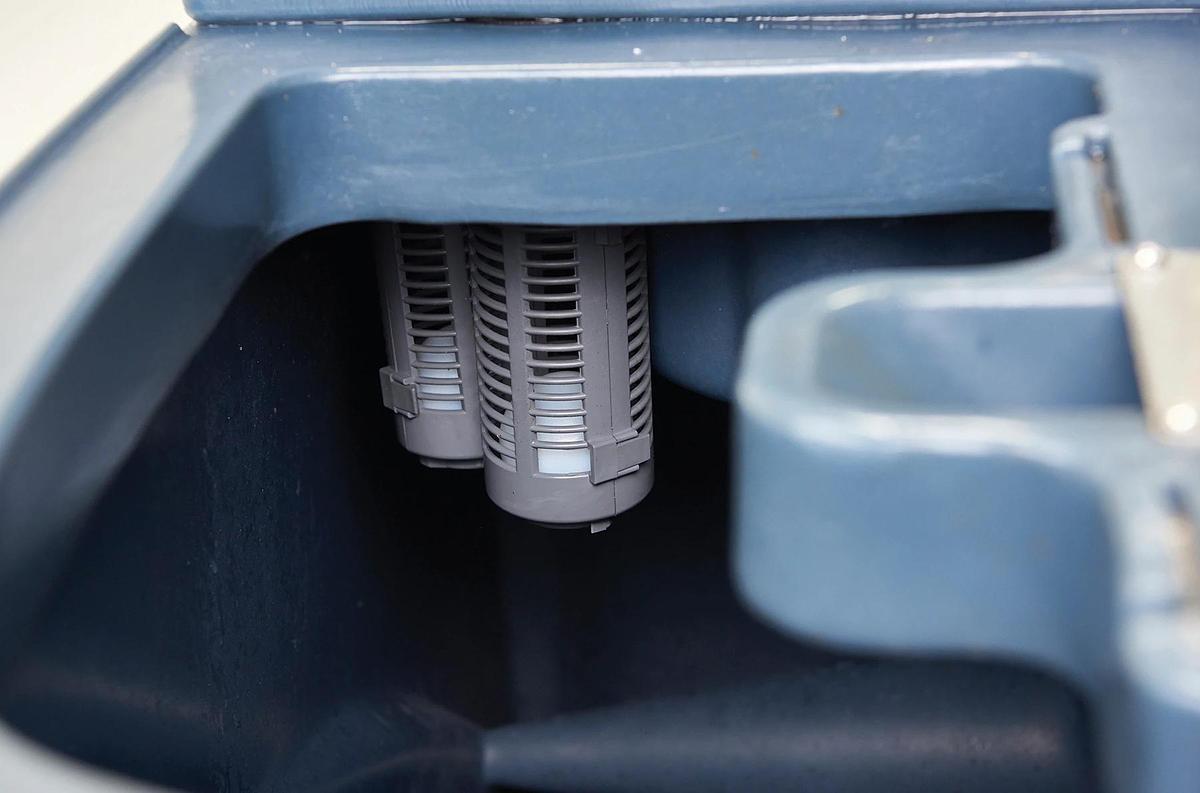

Solution/recovery tank capacity75 gal (285 L) each
Sweeping coverage rate per hour146,400 sq ft (13,600 sq m)
Sound level (IEC60335-2-72)82 dB A
Water IngressionAll electric drive motors and actuators rated IP55 for water washdown
PowerKubota WG972: 3 cyl., 0.96 L - 30 hp (22.0 kW)

Description

Benefits of CS7010 Hybrid & Battery Drive Sweeper-Scrubbers
The CS7010 takes sustainable cleaning to the next level. You’ll reduce your cleaning time and costs from the benefits of dedicated dry sweeping and wet scrubbing in a single pass, and achieve up to 30% fuel savings from Hybrid technology. The CS7010’s low maintenance, leak-free Electric Drive Technology replaces inefficient, higher maintenance hydraulic systems.

Greener, Cleaner and Smarter
The innovative CS7010™ is the industry’s first hybrid and ePower™ battery drive combination sweeper-scrubber, reinventing an entire class of equipment and slashing your Total Cost of Ownership. Available in three models — LPG-Hybrid, Diesel-Hybrid and ePower Battery.

Included accessories

  • DISC BRUSH-17 MIDLITE 3 LUG

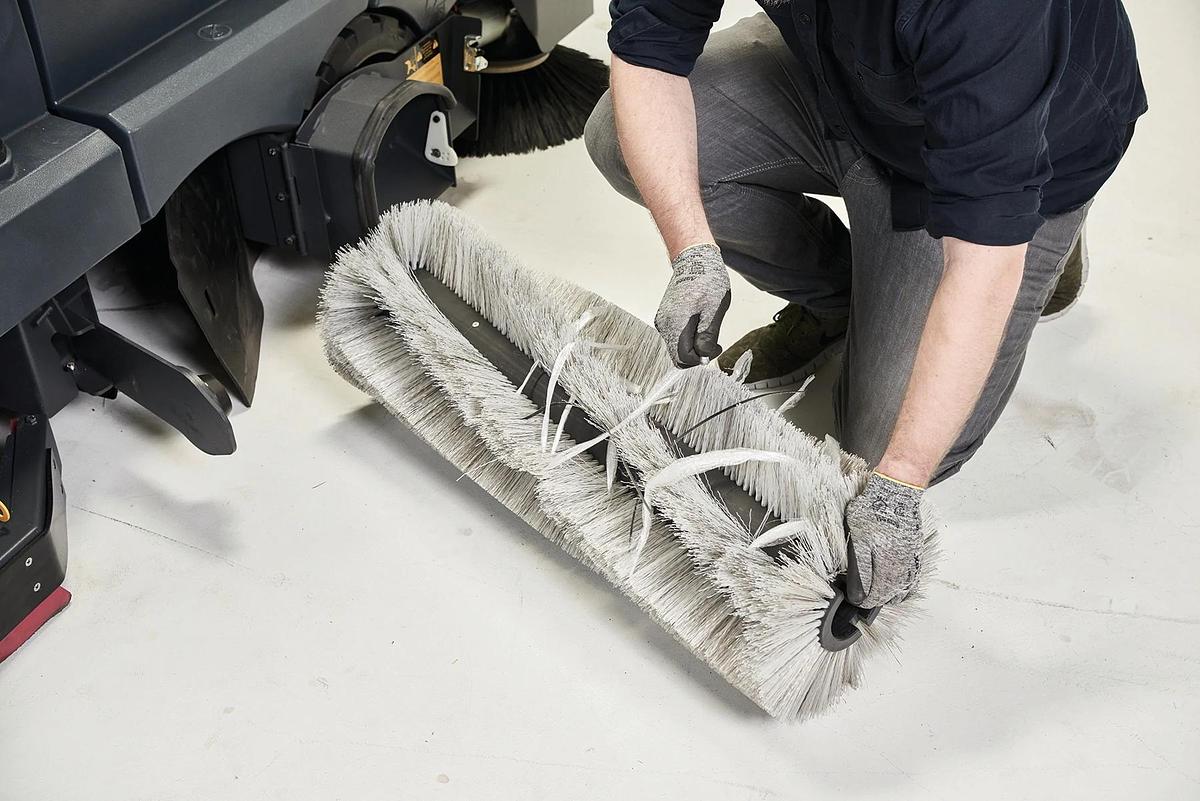

  • BROOM MAIN 310X900 SPIRAL 6R MIX STEEL

    • Hybrid & Battery Drive Sweeper-Scrubbers

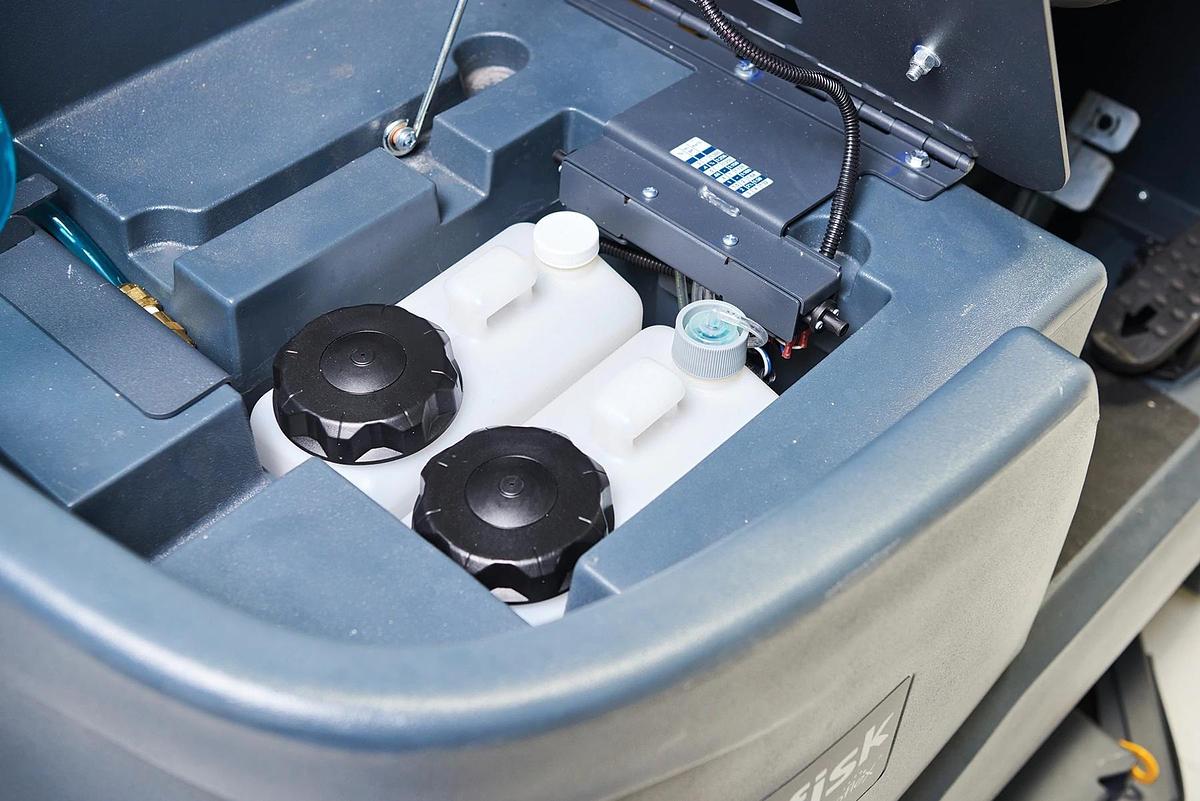

  • Clean more sustainably, with up to 30% savings on water and detergent, with the standard SmartFlow™, and even more with the optional EcoFlex™ system
  • Choose from the broadest range of machine power configurations in the industry — Hybrid – Kubota LPG, diesel, or gasoline plus superior run-time battery and fuel cell

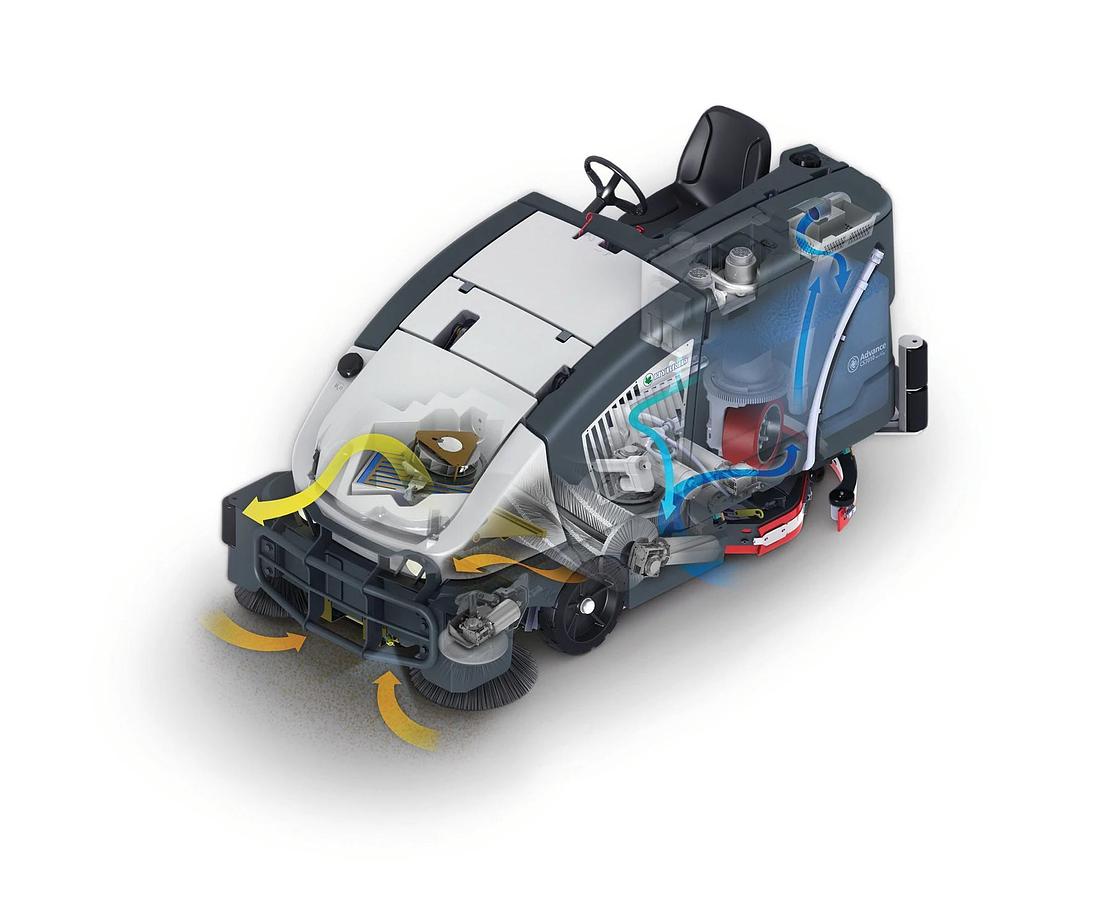

  • Complete dry sweeping system with dual side brooms, powerful main broom, dust control system, and high capacity 7 ft 3 high-lift hopper system
  • Control airborne dust generated by the side brooms with optional DustGuard™

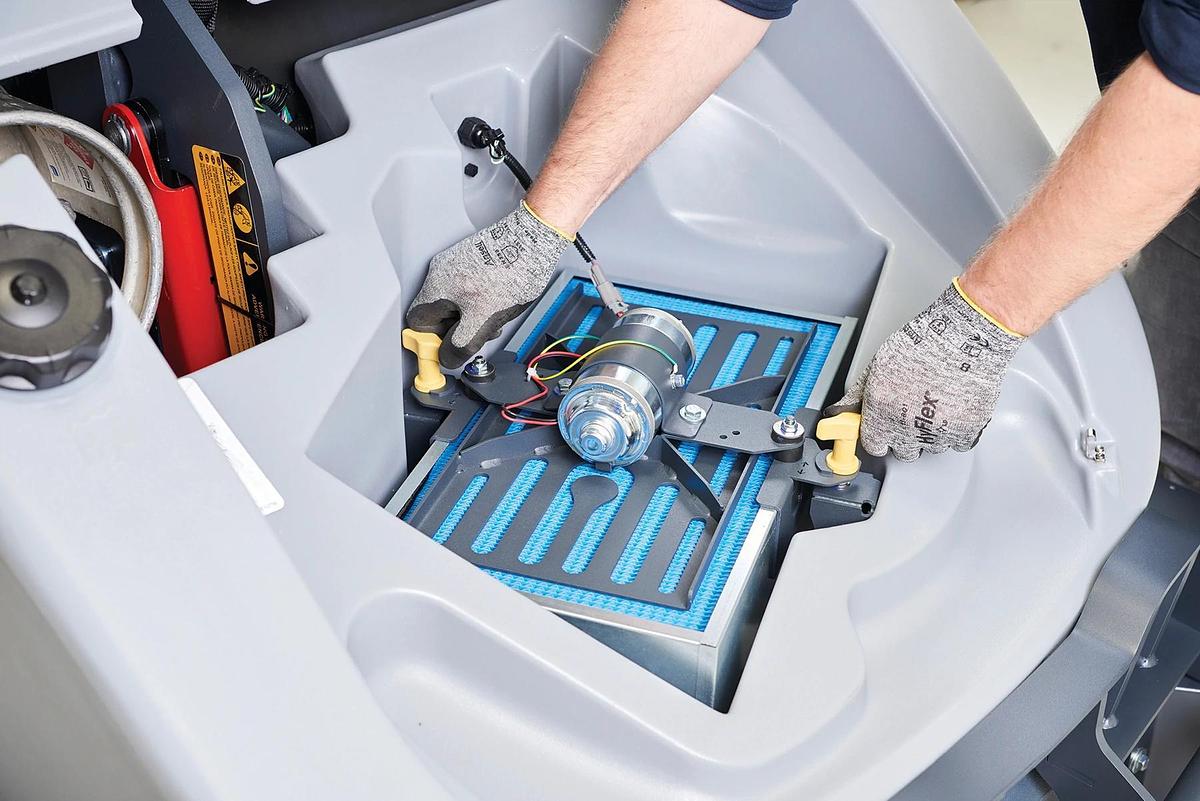

  • Improve air quality with the Donaldson PowerCore® Ultra-Web™ nanofilter with MERV 13 rating and a variable frequency shaker

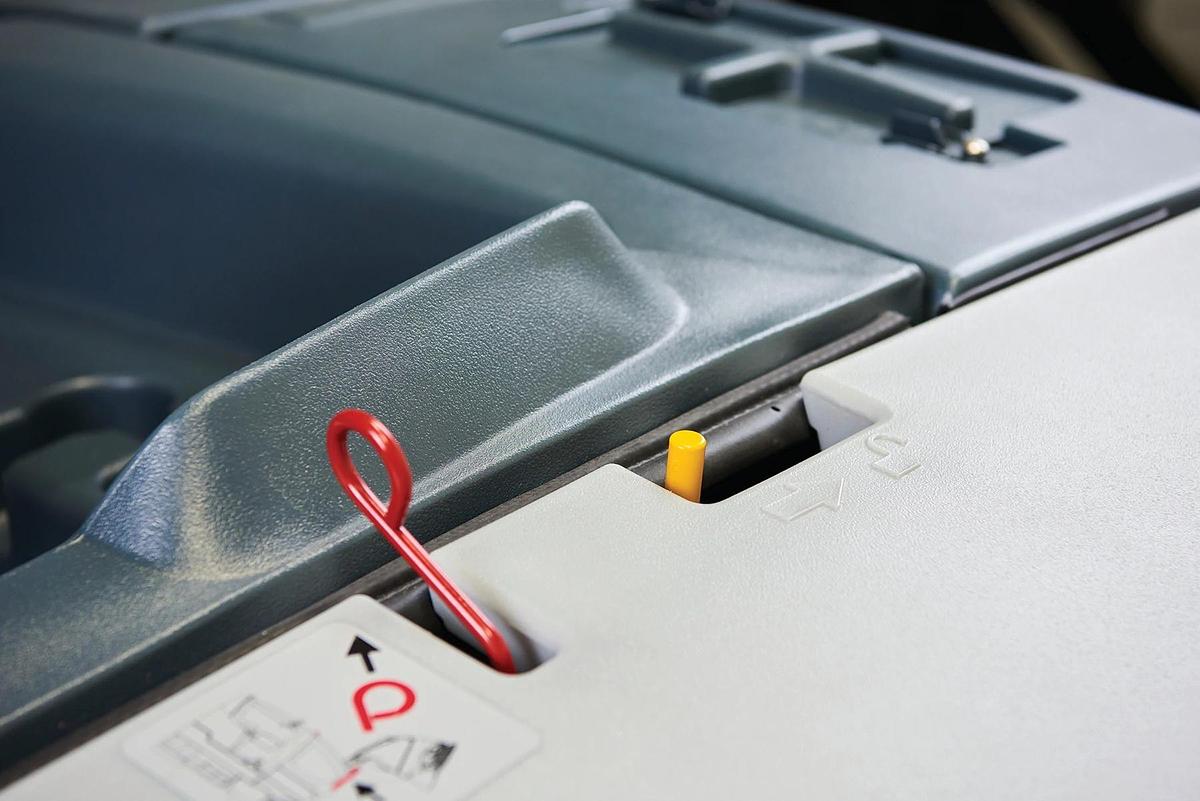

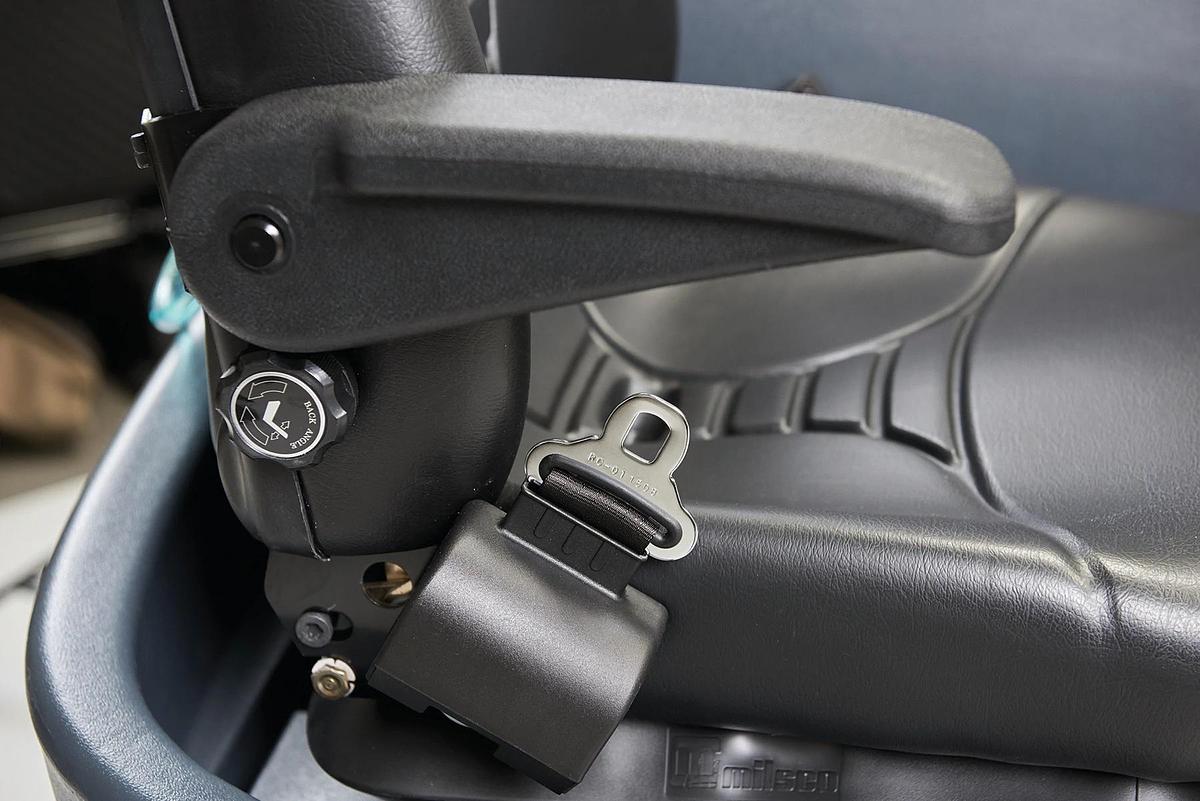

  • Ensure operator safety with our Clear-View™ design, automatic speed reduction in turns and seat-accessible hopper safety prop rod
  • Simplify routine maintenance and minimize service costs with MaxAccess™ design
    • Show All
